Description
Zhiyun Fiveray M40 Overview
- 1Description
- 2Powerful 40W Pocket Light
- 3Dimming
- 4Built-In Battery
- 5Variable Color Temperature
- 6LED Status Indicators
- 7USB-C Charging
- 8Mounting
By Photo's
Mary Latvis
The Zhiyun-Tech FIVERAY M40 is a compact yet powerful 40W LED fill light. This pocket-sized light features a 2700 to 6200K adjustable color temperature, a separate 0 to 100% dimming function, and a runtime of up to 29 minutes at the maximum 40W output. The integrated 2600mAh battery charges in about 1 hour and 50 minutes using the included USB-C cable. The FIVERAY M40 also features LED status lights, fan cooling, and both fold-out bracket and 1/4"-20 thread mounting options.
Powerful 40W Pocket Light
This powerful, compact pocket light outputs up to 40W and is ideal as a fill light
Dimming
A wheeled control enables you to dial in just the brightness you want, from 0 to 100%
Built-In Battery
The integrated lithium-ion battery lasts up to 29 minutes at maximum brightness
Variable Color Temperature
The color temperature is adjustable from 2700 to 6200K
LED Status Indicators
LEDs indicate the status of the color temperature, the battery level, and the dimming level
USB-C Charging
Charges via a USB-C port that can also be used for firmware updates
Mounting
Mounting options include a built-in folding bracket and a 1/4"-20 thread
UPC: 191493002937
In the Box
- Zhiyun FIVERAY M40 Powerful 40W Pocket LED Light

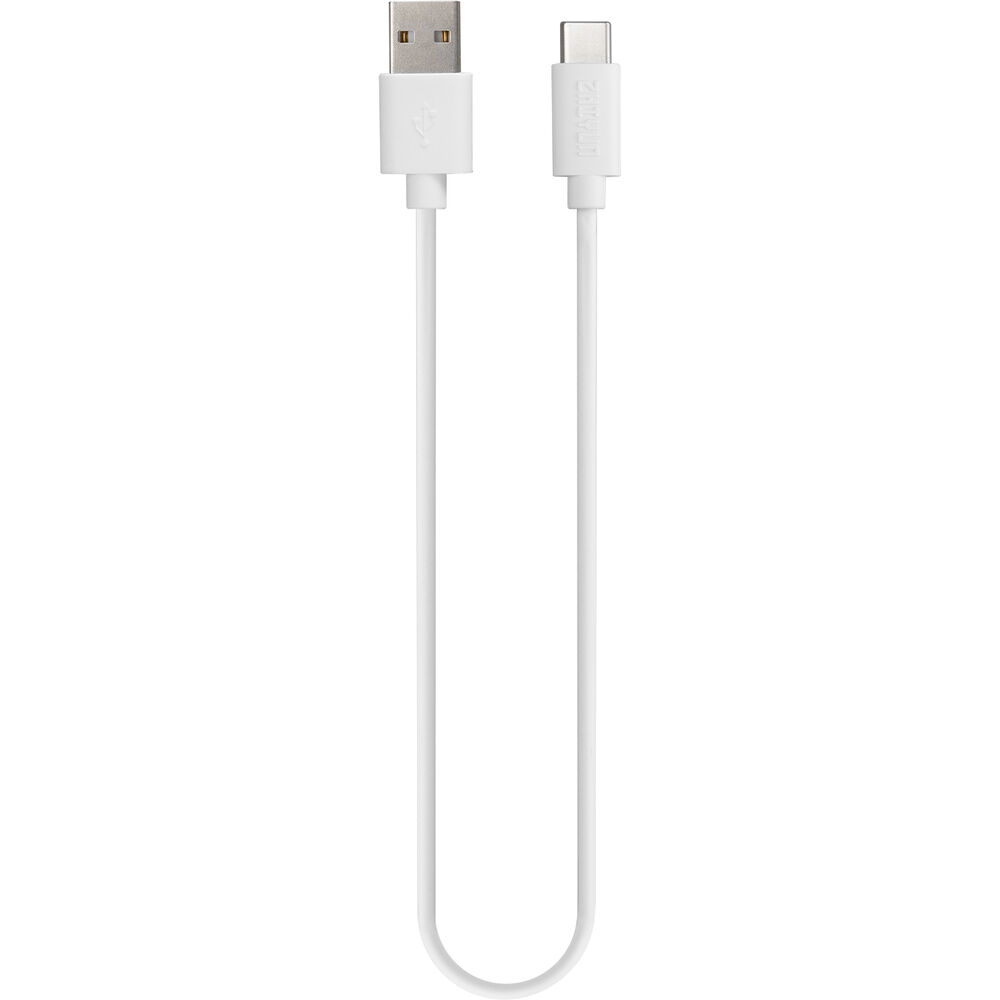

- USB-C Charging Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Powerful 40W Pocket Light
- Dimming
- Built-In Battery
- Variable Color Temperature
- LED Status Indicators
- USB-C Charging
- Mounting
Zhiyun Fiveray M40 Specs
Light Fixture
| Item Type | 1 x LED Array LED Light Panel |
| Included Storage Case | None |
| Lumens | 1634 (at 4300K) |
| Photometrics | 4300K: 97 fc / 1050 Lux at 3.3' / 1 m* 408 fc / 4400 Lux at 1.6' / 0.5 m 1300 fc / 14,000 Lux at 1' / 0.3 m |
| Effective Distance | 3.3' / 1 m |
| Color Temperature | 2700 to 6200K |
| Color Modes | Daylight, Tungsten |
| Color Accuracy Standard | TLCI 97 CRI 96 |
| Cooling System | Fan/Passive Combo |
| Dimming | Yes, Built-In Dimmer 0 to 100% |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | None |
Connectivity
| Mobile App Compatible | *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Power & I/O
| Power Source | Battery (Built-In) |
| Inputs/Outputs | 1 x USB-C Power Input |
| Battery | 1 x Rechargeable Lithium-Ion, 2600 mAh (Built-In) � Up to 29-Minute Runtime at Maximum Brightness |
| Battery Charging | 1 x Charging Cable (Included) |
| DC Input Power | 12 VDC at 1.2 A |
| Power Pass-Thru | No |
| Power Consumption | 40 W |
Environmental
| Environmental Protection | None |
| Operating Temperature | 22 to 72°F / -10 to 40°C |
General
| Display | LED |
| Dimensions | 5.37 x 3.06 x 1.1" / 13.65 x 7.78 x 2.9 cm |
| Weight | 0.7 lb / 320 g |
Packaging Info
| Package Weight | 1.225 lb |
| Box Dimensions (LxWxH) | 6.9 x 4.3 x 2.1" |
