Description
WD SN580 Internal SSD Overview
By Photo's
Steven Esposito

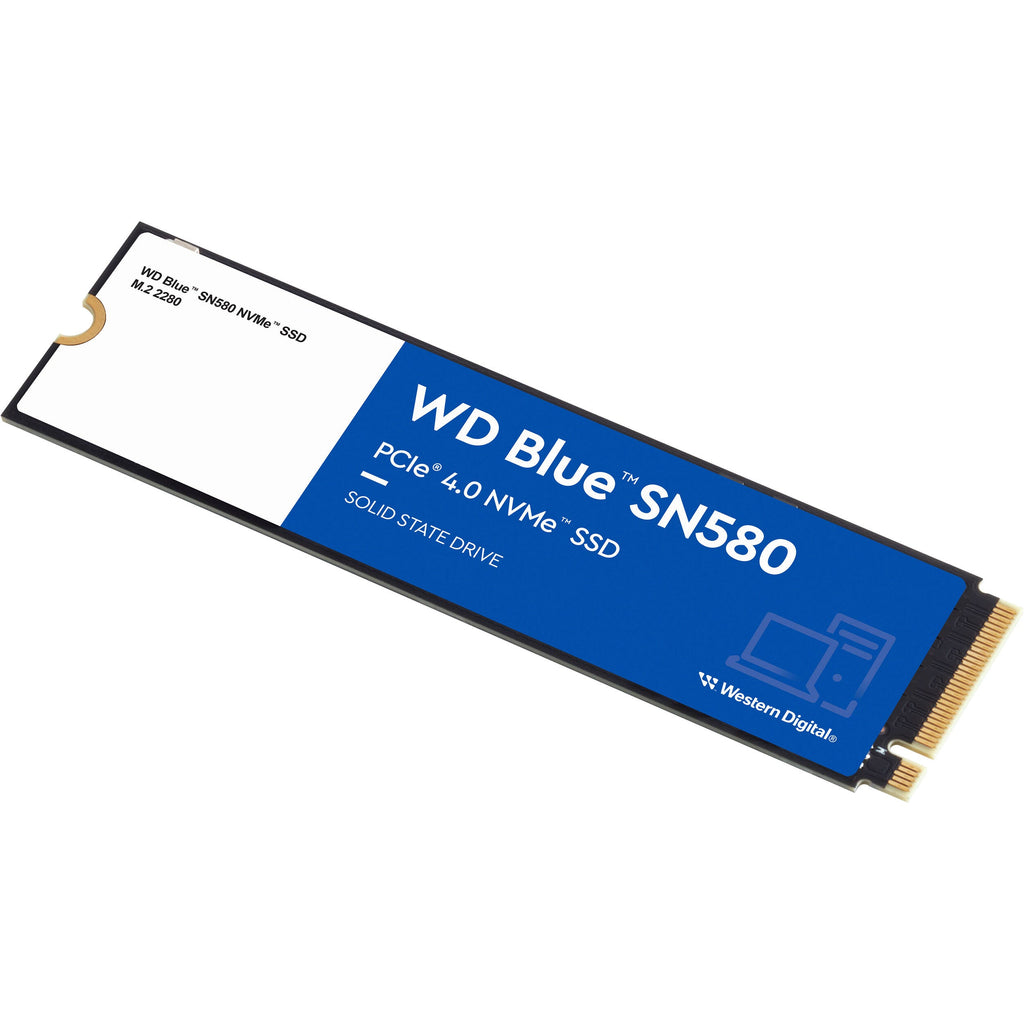

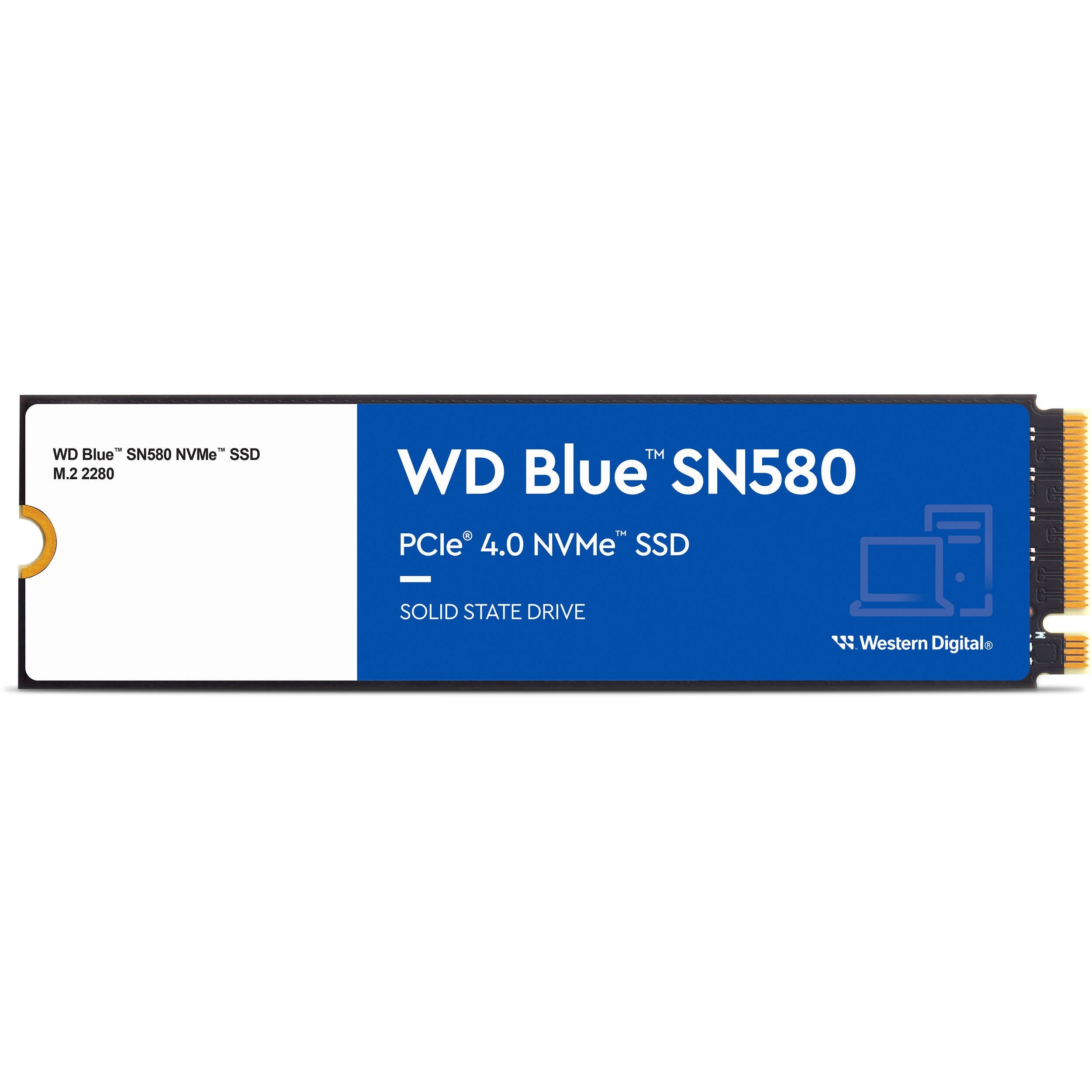

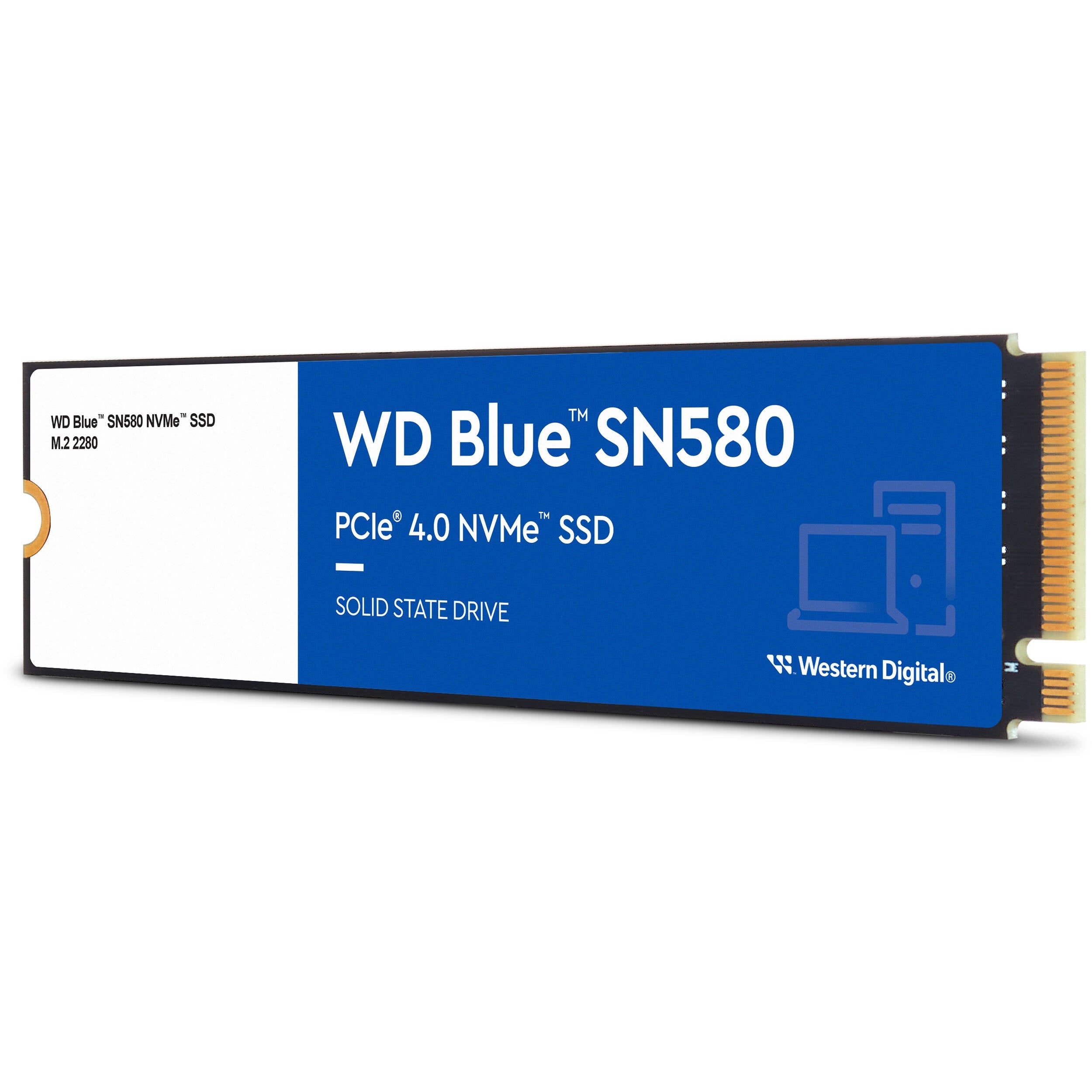

Expand the storage of your system with the WD 500GB Blue SN580 NVMe M.2 Internal SSD. Featuring PCIe 4.0 x4 technology, you can easily give yourself more room for your creative projects while also enhancing speed and application performance.

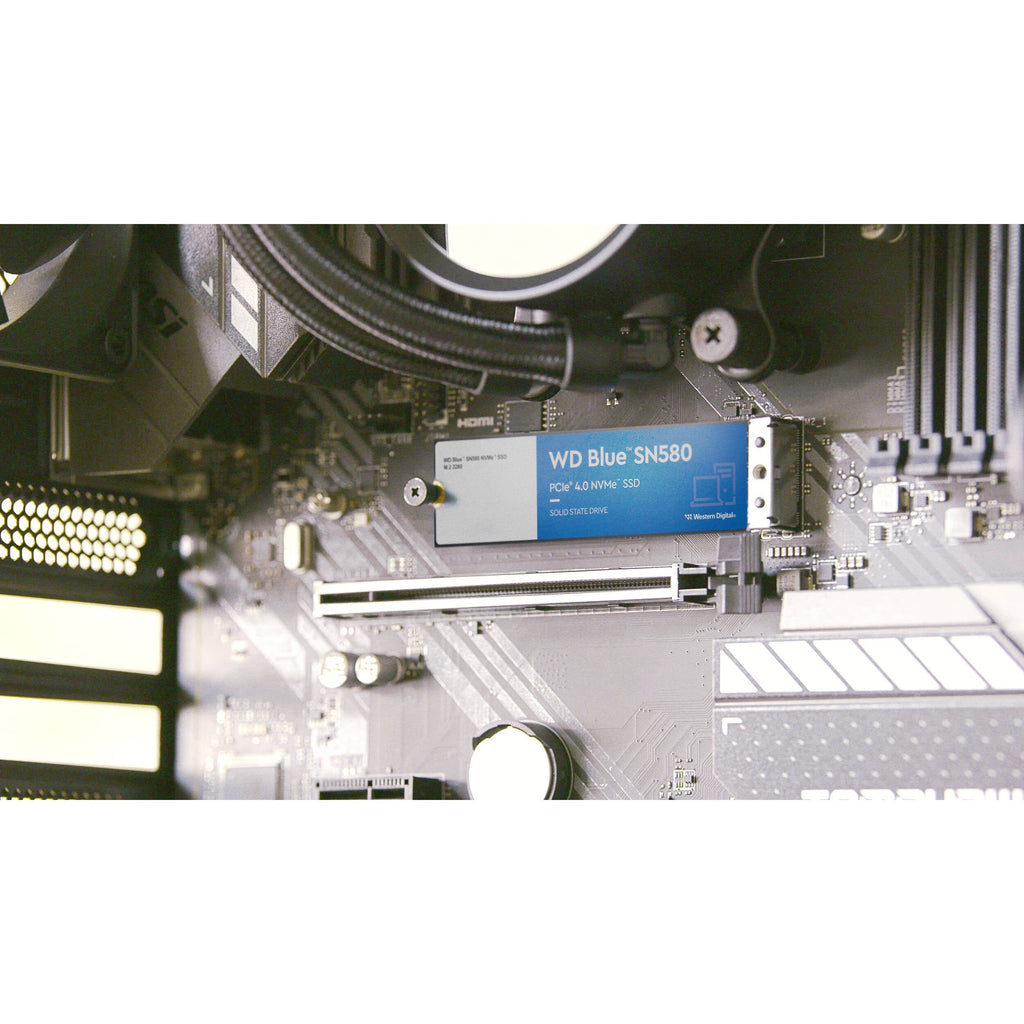

You get a maximum capacity of 500GB which is large enough to fit your files, documents, media, and more. The SN580's 2280 M.2 size fits into most motherboards and operates on the PCIe 4.0 x4 interface, giving you read and write speeds up to 4000 and 3600 MB/s, respectively. You get long-lasting performance thanks to the 300TBW endurance and 1.5-million hour MTFB.
UPC: 619659204471
In the Box
- WD 500GB Blue SN580 NVMe M.2 Internal SSD
- Limited 5-Year Manufacturer Warranty
WD SN580 Internal SSD Specs
Key Specs
| Storage Capacity |
500 GB PCIe 4.0 x4 M.2 2280 SSD
|
| Read Speed |
Sequential: 4000 MB/s
Random: 450,000 IOPS (4 kB Files) |
| Write Speed |
Sequential: 3600 MB/s
Random: 750,000 IOPS (4 kB Files) |
| Read Speed |
Sequential: 4000 MB/s
Random: 450,000 IOPS (4 kB Files) |
| Write Speed |
Sequential: 3600 MB/s
Random: 750,000 IOPS (4 kB Files) |
Reliability / Data Integrity
| Endurance (Total Bytes Written) |
300 TB
|
| Mean Time Between Failures (MTBF) |
1.5 Million Hours
|
Electrical
| Power Draw |
65.00 mW (Active)
3.3 mW (Standby) |
Environmental
| Operating Temperature |
32 to 185°F / 0 to 85°C
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
| Operating Shock |
1500 G / 0.5 ms
|
| Operating Vibration |
5 G / 10 to 2000 Hz
|
| Storage Vibration |
4.9 G / 7 to 8000 Hz
|
General
| Certifications |
BSMI, CAN, ICES-3(B)/NMB-3(B), CE, FCC, Kcc, RCM, TUV, UL, VCCI, RoHS
|
| Dimensions |
3.1 x 0.9 x 0.09" / 80 x 22 x 2.38 mm
|
| Weight |
0.2 oz / 5.5 g
|
Packaging Info
| Package Weight |
0.095 lb
|
| Box Dimensions (LxWxH) |
6 x 5 x 0.5"
|
