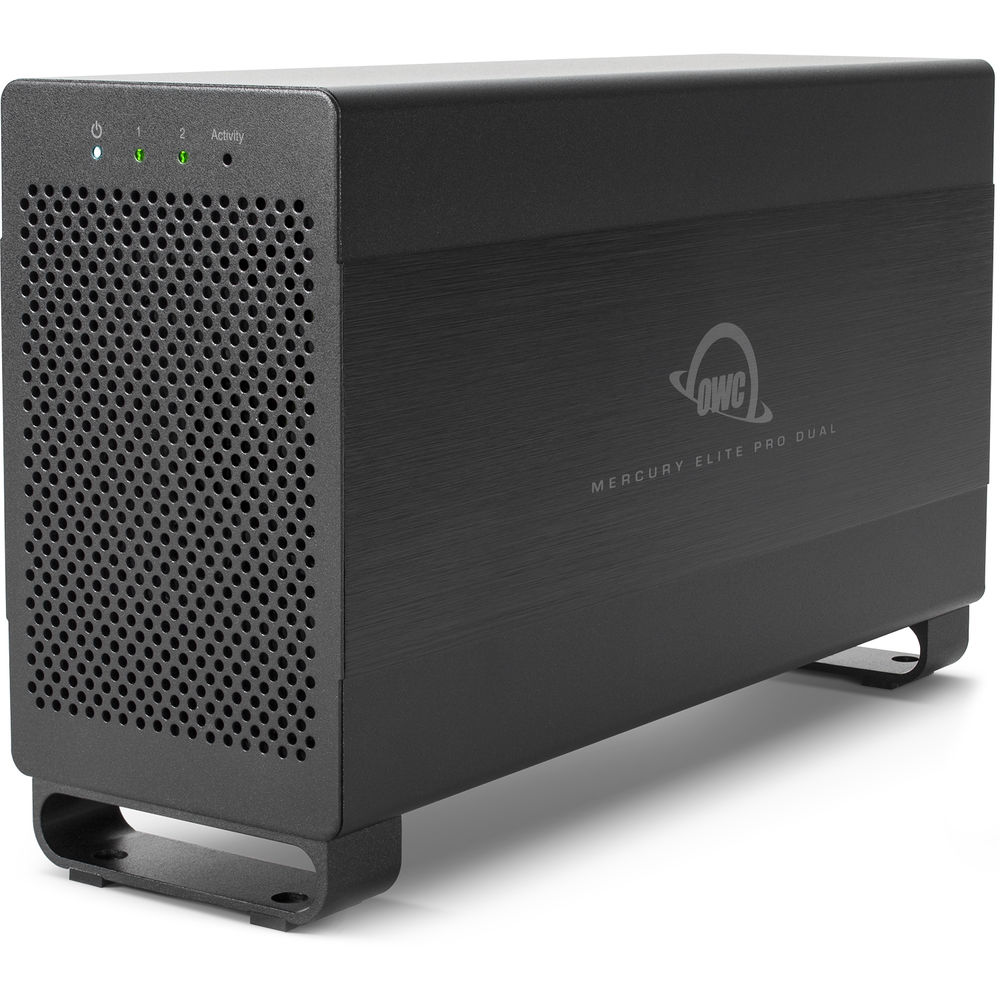

OWC Mercury Elite Pro Dual 40TB 2-Bay Thunderbolt 2 RAID Array (2 x 20TB)
Roll over image to zoom in Click on image to zoom
OWC Mercury Elite Pro Dual 40TB 2-Bay Thunderbolt 2 RAID Array (2 x 20TB)

OWC Mercury Elite Pro Dual 40TB 2-Bay Thunderbolt 2 RAID Array (2 x 20TB)

OWC-10
Price:
$140,210.00

Description

OWC Dual External HDD Overview

  • 1Description
  • 2Dual Drive Hardware RAID
  • 3Ready for You Right Out of the Box
  • 4Make More Connections
  • 5Quality You Can Support and Trust

The Mercury Elite Pro Dual 40TB 2-Bay Thunderbolt 2 RAID Array from OWC / Other World Computing features two bays that each sport a 20TB hard drive to deliver a total raw capacity of 40TB for your Thunderbolt-equipped system. The two 3.5" hard drives are preconfigured in a hardware RAID 0 array that strips the data across both drives to provide speeds of up to 474 MB/s. You can reconfigure the drives in a RAID 1, SPAN, or individual mode utilizing the hardware RAID controller. Other notable features include an aluminum enclosure and a quiet fan to cool the drives and internal components.

To keep up with the fast transfer speeds from the drives, the dual Thunderbolt 2 ports have a 20 Gb/s bi-directional channel for each port. The Mercury Elite Pro also has a USB 3.2 Gen 1 (USB 3.1 Gen 1/3.0) connection for greater compatibility with a wider range of systems. Moreover, Thunderbolt and USB-B to USB-A cables are included so you can start storing and editing right out of the box.

Dual Drive Hardware RAID
The Mercury Elite Pro Dual with Thunderbolt 2 technology is a suitable RAID solution for creative workflows, project archives, and system backups. Inside are two drives, easily configured in RAID 0, 1, span, or independent mode.
Ready for You Right Out of the Box
The Mercury Elite Pro Dual comes with two Thunderbolt 2 ports, one USB 3.0 port, and all of the cables you need for use with almost any system. Ready to perform in RAID 0, it's also easily configured in RAID 1, span, and independent modes to match your workflow needs.
Make More Connections
With dual Thunderbolt 2 ports, the Mercury Elite Pro Dual supports Thunderbolt daisy-chains that enable you to expand your workstation's capabilities with up to five additional Thunderbolt devices, including high-speed storage, expansion chassis for specialist workflows, and even a high-definition display.
Quality You Can Support and Trust
The Mercury Elite Pro Dual with Thunderbolt 2 technology features a heat-dissipating, brushed-aluminum design with a whisper-quiet, high-performance fan. In addition, smart power conserves energy and extends the life of the drives inside. The Elite Pro Dual automatically spins down during periods of inactivity, and powers on and off with your workstation. Extraordinarily durable and efficient, the Mercury Elite Pro Dual with Thunderbolt 2 technology is built to seamlessly integrate with any work environment from large-scale, high demand production studios to your home office.
UPC: 810100982423

In the Box

  • OWC Mercury Elite Pro Dual 40TB 2-Bay Thunderbolt 2 RAID Array (2 x 20TB)
  • USB-B 3.2 Gen 1 to USB-A Cable (2.0' / 0.6m)
  • Thunderbolt Cable (3.3' / 1.0m)
  • External Power Supply
  • Power Cable
  • Limited 3-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Dual Drive Hardware RAID
    • Ready for You Right Out of the Box
    • Make More Connections
    • Quality You Can Support and Trust

    OWC Dual External HDD Specs

    Key Specs
    Storage Capacity
    40 TB
    Included Drives
    2x 20 TB 3.5" HDD
    Interface
    SATA III
    Number of Bays
    2x 2.5"/3.5"
    Inputs/Outputs
    2x Mini DisplayPort Thunderbolt 2 (20 Gb/s)
    1x USB-B 3.0 / 3.1/3.2 Gen 1
    RAID
    RAID 0/1/JBOD
    Drives
    Storage Capacity
    40 TB
    Included Drives
    2x 20 TB 3.5" HDD
    Cache Memory per Drive
    256 MB
    Initial RAID Configuration
    RAID 0
    Interface
    SATA III
    Rotational Speed
    7200 rpm
    General
    Number of Bays
    2x 2.5"/3.5"
    Default OS Support
    Requires Formatting Before Use
    Inputs/Outputs
    2x Mini DisplayPort Thunderbolt 2 (20 Gb/s)
    1x USB-B 3.0 / 3.1/3.2 Gen 1
    Compatible Drive Interface
    SATA III
    Form Factor
    Desktop
    RAID
    RAID 0/1/JBOD
    Transfer Rates
    474 MB/s (Read/Write in RAID 0)
    UASP Support
    Yes
    Software
    OS Compatibility
    Windows XP or Later
    macOS 10.6 or Later
    Security
    Encryption
    Yes
    Security Features
    Kensington Security Slot
    Electrical
    AC Input Power
    100 to 240 VAC, 50 / 60 Hz
    Power Source
    AC Adapter
    Environmental
    Operating Temperature
    41 to 107°F / 5 to 42°C
    Operating Humidity
    8 to 90% ()
    Operating Shock
    65 G / 2.0 ms
    Storage Temperature
    -40 to 149°F / -40 to 65°C
    Storage Humidity
    5 to 95% (Non-Condensing)
    Storage Shock
    175 G / 2.0 ms
    Physical
    Color
    Black
    Status Monitoring
    LED Indicator
    Cooling
    1x Fan
    Material of Construction
    Aluminum
    Dimensions
    9 x 5.3 x 2.8" / 228.6 x 134.6 x 71.1 mm
    Weight
    2.4 lb / 1.1 kg
    Packaging Info
    Package Weight
    7.715 lb
    Box Dimensions (LxWxH)
    12.2 x 9.4 x 5.1"
