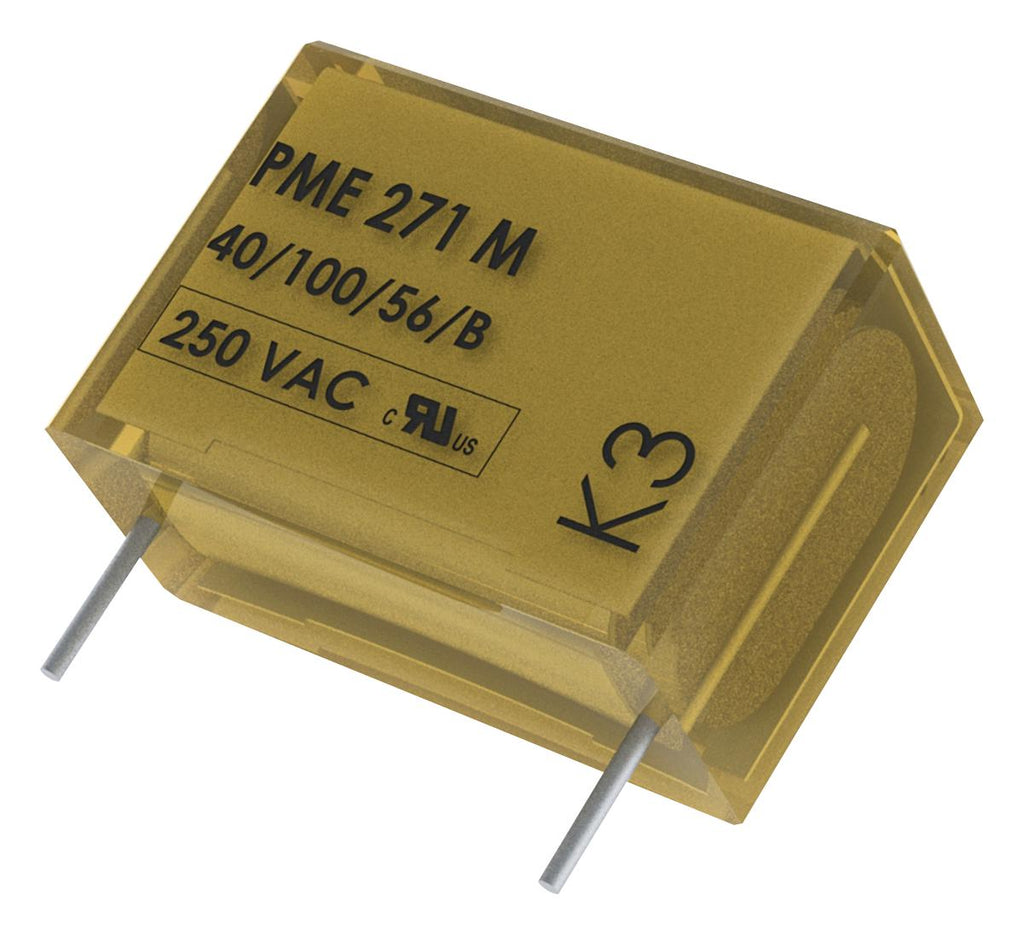

The PME271M Series is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V-0.Typical applications include worldwide use in electromagnetic interference suppression in all X2 and across-the-line applications.
- Approvals: ENEC, UL, cUL / Rated voltage: 275 VAC 50/60 Hz
- Capacitance range: 0.001 - 0.6 µF / Capacitance tolerance: M = ±20% (for C <= 0.1 µF), K = ±10% (for C > 0.1 µF) / Lead spacing: 10.2 - 25.4 mm
- Climatic category: 40/110/56, IEC 60068-1 / Operating temperature range of -40?C to +110?C
- Tape and reel in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
- High dV/dt capability
- Excellent self healing properties
- High dV/dt capability
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Capacitance |
0.1µF |
| Suppression Class |
X2 |
| Product Range |
PME271M Series |
| Voltage Rating X |
275V |
| Voltage Rating Y |
- |
| Capacitor Dielectric Type |
Paper (MP) |
| Capacitance Tolerance |
± 20% |
| dv/dt Rating |
600V/µs |
| Capacitor Case Style |
Radial |
| Capacitor Terminals |
Radial Leaded |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
110°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
KEMET |
| Part Number |
PME271MD6100MR30 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
