Description
The PME271E Series consists of multilayer metallized paper, encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V-0. Typical applications include worldwide use as an electromagnetic interference suppressor in all X1 and across-the-line applications.
- Approvals: ENEC, UL / Rated voltage: 300 VAC 50/60 Hz
- Capacitance range: 0.01 - 0.22 µF / Capacitance tolerance: ±20% for C <= 0.1 µF, ±10% for C > 0.1 µF / Lead spacing: 15.2 - 25.4 mm
- Climatic category: 40/110/56/B, IEC 60068-1 / Operating temperature range of -40�C to +110�C
- Tape and reel packaging in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
- 100% screening factory test at 2150 VDC
- Highest possible safety regarding active and passive flammability
- Excellent self healing properties
- High dV/dt capability
Industrial, Consumer Electronics, Portable Devices, Power Management
Other details
| Brand | KEMET |
| Part Number | PME271ED6100MR30 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| CAD Multiple Formats EN | |

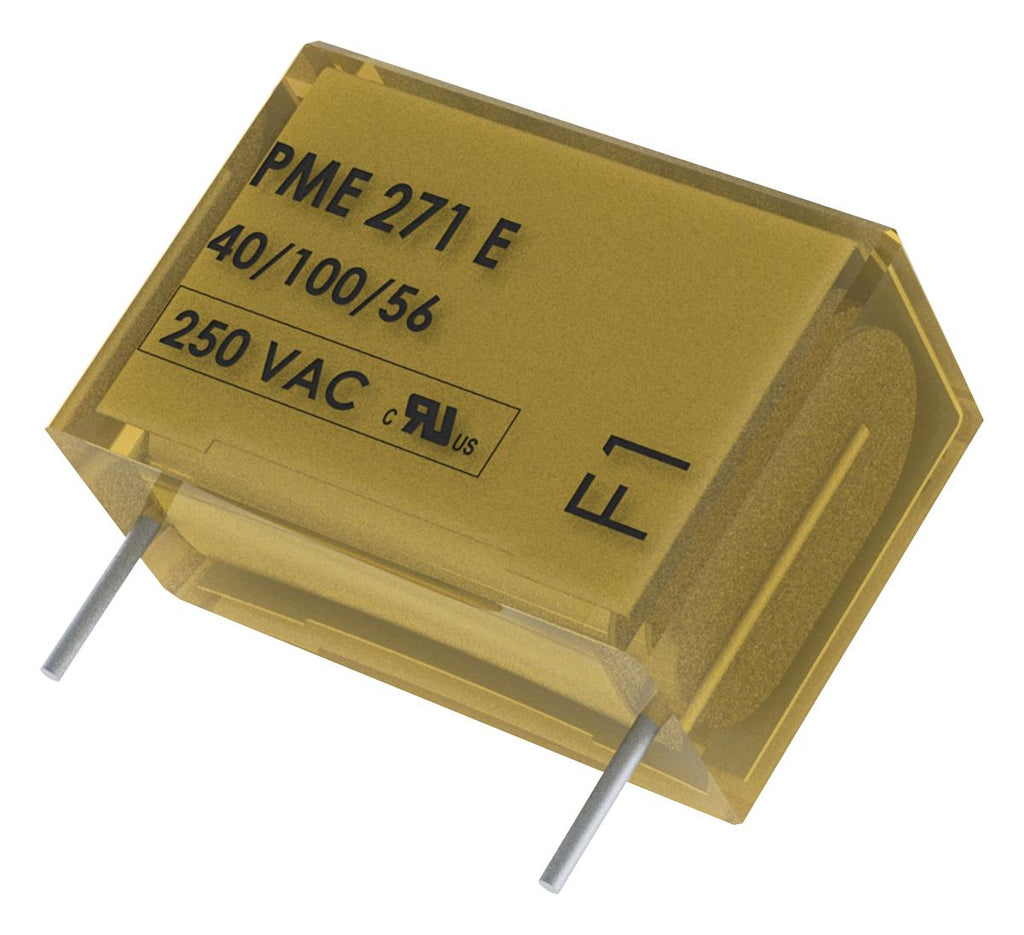

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
