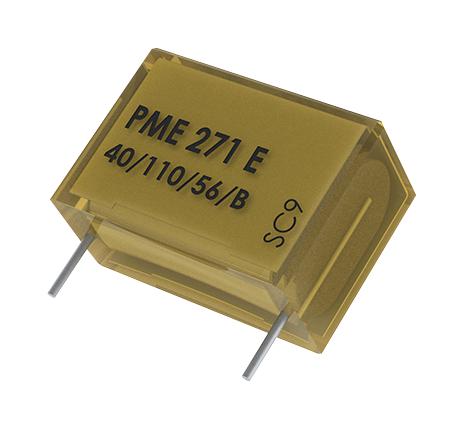

The PME271E Series consists of multilayer metallized paper, encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V-0. Typical applications include worldwide use as an electromagnetic interference suppressor in all X1 and across-the-line applications.
- Approvals: ENEC, UL / Rated voltage: 300 VAC 50/60 Hz
- Capacitance range: 0.01 - 0.22 µF / Capacitance tolerance: ±20% for C <= 0.1 µF, ±10% for C > 0.1 µF / Lead spacing: 15.2 - 25.4 mm
- Climatic category: 40/110/56/B, IEC 60068-1 / Operating temperature range of -40?C to +110?C
- Tape and reel packaging in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
- Highest possible safety regarding active and passive flammability
- Excellent self healing properties
- High dV/dt capability
Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Product details
| Capacitance |
0.15µF |
| Suppression Class |
X1 |
| Product Range |
PME271E Series |
| Voltage Rating X |
300V |
| Voltage Rating Y |
- |
| Capacitor Dielectric Type |
Paper (MP) |
| Capacitance Tolerance |
± 10% |
| dv/dt Rating |
400V/µs |
| Capacitor Case Style |
Radial Box |
| Capacitor Terminals |
Radial Leaded |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
110°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
KEMET |
| Part Number |
PME271E615KR30 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
