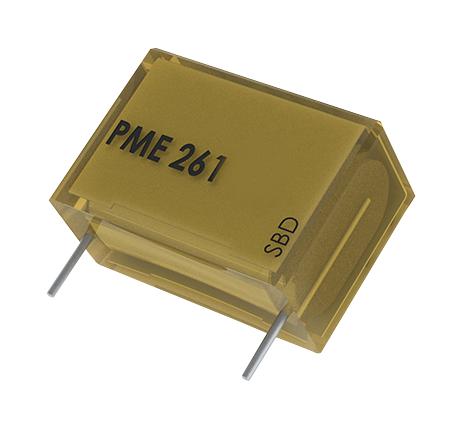

The PME261 Series is constructed of multilayer metallized paper, encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V-0. For general use in DC and low frequency pulse applications.
- Voltage range: 400 - 1,000 VDC; 220 - 500 VAC
- Capacitance range: 0.001 - 1 µF
- Climatic category: 40/70/56, IEC 60068-1
- Operating temperature range of -40?C to +70?C in AC applications
Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Product details
| Capacitance |
1000pF |
| Voltage Rating |
1kV |
| Capacitor Dielectric Type |
Paper (MP) |
| Capacitance Tolerance |
± 10% |
| Product Range |
PME261 Series |
| Capacitor Case Style |
Radial Box |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
10.2mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
100°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
KEMET |
| Part Number |
PME261JA4100KR19T0 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
