Description

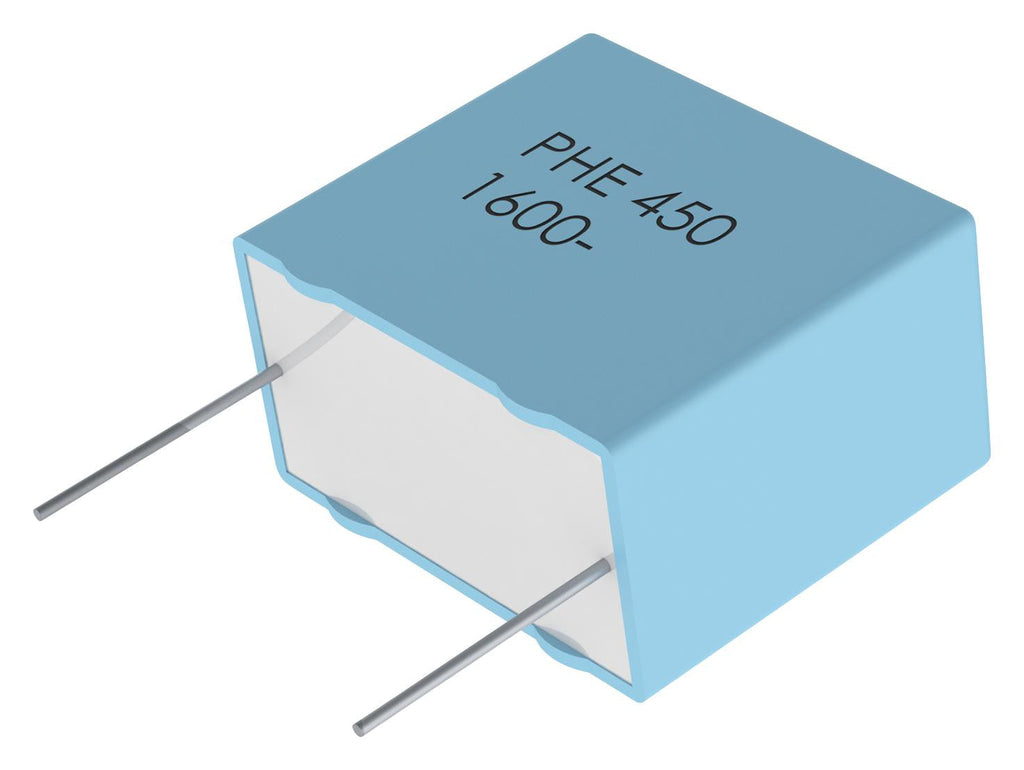

The PHE450 Series is a polypropylene dielectric with double metallized polyester film as electrodes. The capacitor is encapsulated in self-extinguishing resin in a box of material meeting the requirements of UL 94 V-0.Typical applications include high frequency applications with high current stress such as deflection circuits in televisions and protection circuits in switched mode power supply (SMPS) and electronic ballasts.
- Rated voltage: 250 - 3,000 VDC / 180 - 1,000 VAC
- Capacitance range: 0.00033 - 10 µF / Capacitance tolerance: ±5%, other tolerances on request
- Lead spacing: 7.5 - 37.5 mm
- Climatic category: 55/105/56, IEC 60068-1 / Category temperature range of -55°C to +105°C
- Tape and reel packaging in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
Applications
Consumer Electronics, Power Management, Lighting
Product details
| Operating Temperature Min | -55°C |
| Voltage Rating V DC | 1kV |
| Capacitor Terminals | Radial Leaded |
| Operating Temperature Max | 85°C |
| Product Range | PHE450 Series |
| Automotive Qualification Standard | - |
| Capacitor Case Style | - |
| Capacitance | 10000pF |
| Lead Spacing | 15mm |
| Capacitance Tolerance | ± 5% |
| Packaging | Each |
| Capacitor Dielectric Type | PP (Polypropylene) |
Other details
| Brand | KEMET |
| Part Number | PHE450PB5100JR06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
