Description
Hikvision IDS-2CD7186G0-IZS 2.8-12MM Overview

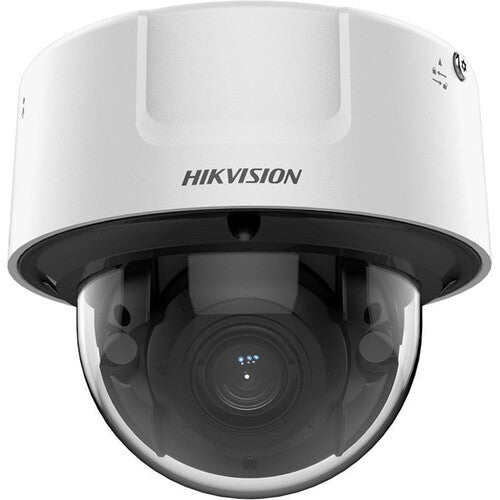

Monitor a room or hallway with the DeepinView IDS-2CD7186G0-IZS 8MP Network Dome Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at up to 30 fps. Supplemental IR illumination provides up to 98' of visibility in low-light conditions. The camera's 2.8-12mm varifocal lens delivers a 112.3 to 41.2° horizontal field of view. Two-way audio is possible thanks to a built-in microphone, along with an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IK10-rated aluminum enclosure for protection from vandalism.
DarkFighter technology for visibility in low-light conditions
IR cut filter for day and night functionality
Blue glass module to minimize ghosting
Precise iris
4.3x optical zoom
Three-axis angle adjustments
H.265+, H.265, H.264+, H.264, and MJPEG video compressions
Smooth streaming
Scalable Video Coding (SVC) for H.265/H.264 encoding
CBR and VBR
Target cropping
Image parameters switch
120 dB wide dynamic range
Image enhancements include; backlight compensation, highlight compensation, 3D-DNR, defog, electronic image stabilization, and distortion correction
Region of interest supports four fixed regions for each stream
Picture overlay
General functions include; anti-flicker, five streams and up to five custom streams, ePTZ, heartbeat, mirror, privacy masks, flash log, password reset via email, and pixel counter
Up to 32 users with three host levels (admin, operator, and user)
Up to 20 channels in simultaneous live view
1000M self-adaptive RJ45 Ethernet port
Self-adaptive RS-485 port
Alarm input and output
Audio input and output
Built-in microphone
Environment noise filtering
Compatible with Internet Explorer 9 or higher (plug-in required), Chrome 45 or higher (plug-in required for Chrome 41.0 to 44), Firefox 52 or higher (plug-in required for Firefox 30.0 to 51), Safari 8.0 to 11 (plug-in required), iOS, Android, iVMS-4200, and Hik-Connect
Online upgradeable
Dual backup
Hardware and software reset
PVC free
Analytics include; motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection, and counting
Deep Learning Functions
Face capture detects up to 60 faces simultaneously, supports left and right swings from -60 to 60°, tilting up and down from -30 to 30°, and uploads an image of a face with background and a close-up
Multitarget detection supports simultaneous detection and capture of a human body, a face, and vehicles (7 face features, 13 human body features, and 2 vehicle features)
Attribute-based people counting supports entrance/exit counting (track 30 targets simultaneously) and identification of people who pass repeatedly over a specified period of time
Hard hat detection detects up to 30 human targets simultaneously and supports up to 4 shield regions
Queue management detects numbers of people queuing up and the waiting time of each person, generates reports to compare the efficiency of different queues, and displays the changing status of a chosen queue with raw data export for further analysis
Perimeter protection includes; line crossing, intrusion, region entrance, and region exiting with alarm triggering by specified target types (human and vehicle)
UPC: 842571140767
Hikvision IDS-2CD7186G0-IZS 2.8-12MM Specs
Camera
| Sensor | 8 MP 1/1.8" CMOS |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.2 to 2.5 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 112.3 to 41.2° Vertical: 58 to 23.1° Vertical: 137.3 to 47.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.002 Lux B&W: 0.0002 Lux |
| Shutter Speed | 1/100000 to 1 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Horizontal: 0 to 75° |
Video
| Streaming Resolution | 3840 x 2160 at 30 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | Yes |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK, ISUP |
| Analytics | Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error), Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Audio Exception Detection, Defocus Detection, Counting, Face Capture, Multi-Target Detection, Attribute-Based People Counting, Hard Hat Detection, Queue Management, Perimeter Protection |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | Android iOS *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
Hardware
| Memory | 2 GB RAM / 8000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | AC, DC, PoE 802.3at (30 W) |
| Power Consumption | AC: 11.8 W DC: 12.4 W PoE+: 12.5 W |
Environmental
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IK Rating | IK10 |
General
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC 1 x Serial 9-Pin (RS-485) |
| Illumination | 850 nm IR LEDs up to 98.4' / 30 m |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Material of Construction | Aluminum |
| Dimensions | ø: 5.5 x H: 4.8" / ø: 140.5 x H: 122.6 mm |
| Weight | 1.9 lb / 875 g |
Packaging Info
| Package Weight | 3.005 lb |
| Box Dimensions (LxWxH) | 9.9 x 7 x 6.9" |
