Description
Hikvision DS-2CE70KF0T-MFS Overview

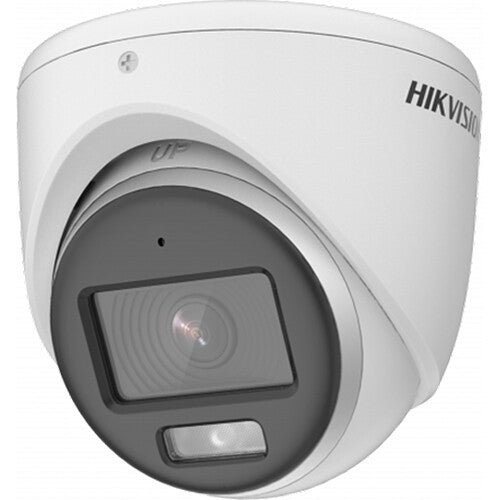

Monitor your surroundings with the ColorVu DS-2CE70KF0T-MFS 5MP Outdoor Analog HD Turret Camera from Hikvision. This unit uses a 5MP progressive scan CMOS sensor to transmit 2960 x 1665 resolution video at up to 20 fps. An auxiliary white light provides up to 66' of illumination for recording full color video in low-light conditions. The camera's 2.8mm fixed lens delivers a 102° horizontal field of view. A built-in microphone, along with a coaxial input enables the camera to pick up audio. Intruders can be kept at bay thanks to a light alarm. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported.
This camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
ColorVu technology provides vivid and colorful images 24/7
Light alarm (white light)
Day and night switching
White balance modes include: auto, manual, outdoor, and global
Auto exposure modes include: digital WDR, BLC, HLC, global, and HLS
2D-DNR
Functions include: brightness, contrast, mirror, defective pixel correction, sharpness, anti-banding, and smart light
PAL/NTSC signal systems
UPC: 842571148220
In the Box
- Hikvision ColorVu DS-2CE70KF0T-MFS 5MP Outdoor Analog HD Turret Camera with 2.8mm Lens
- Limited 3-Year Manufacturer Warranty
Hikvision DS-2CE70KF0T-MFS Specs
Key Specs
| Sensor |
5 MP CMOS
|
| Focal Length |
2.8mm
|
| Lens Field of View |
Horizontal: 102°
Vertical: 56° Diagonal: 122° |
| Video Outputs |
1 x BNC (AHD / HD-CVI / HD-TVI / Composite)
|
| Output Formats |
AHD, HD-TVI:
2960 x 1665 at 20 fps AHD, HD-CVI, HD-TVI: 2560 x 1440 at 30 fps HD-CVI, Composite: 1920 x 1080 at 30 fps |
| Built-In Mic |
Yes
|
| Power Source |
DC
|
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant
*Manufacturer Testing: IP67 |
| Illumination |
White LED up to 65.6' / 20 m
|
Camera
| Sensor |
5 MP CMOS
|
| Lens Mount |
M12
|
| Focal Length |
2.8mm
|
| Maximum Aperture |
f/1
|
| Lens Field of View |
Horizontal: 102°
Vertical: 56° Diagonal: 122° |
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.001 Lux
|
| Shutter Speed |
1/50000 to 1/30 Seconds
|
| Camera Angle Adjustment |
Horizontal: 0 to 360°
Vertical: 0 to 75° Rotation: 0 to 360° |
| Mobile App Compatible |
No
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility |
Video
| Streaming Resolution |
2960 x 1665 at 20 fps
2560 x 1440 at 30 fps |
| Automatic Gain Control |
Yes
|
| Video Outputs |
1 x BNC (AHD / HD-CVI / HD-TVI / Composite)
|
| Output Formats |
AHD, HD-TVI:
2960 x 1665 at 20 fps AHD, HD-CVI, HD-TVI: 2560 x 1440 at 30 fps HD-CVI, Composite: 1920 x 1080 at 30 fps |
Audio
| 1- or 2-Way Audio |
One-Way
|
| Built-In Mic |
Yes
|
Pan & Tilt
| Supported Control Protocols |
HIKVISION-C
|
Networking
| Supported Protocols |
HTTP
|
Sensors & Alarms
| Event Trigger |
No
|
| Data Streaming |
No
|
| Alarm I/O |
No
|
Hardware
| Media/Memory Card Slot |
No
|
| Internal Storage |
No
|
Power
| Power Source |
DC
|
| Power Consumption |
2.5 W
|
Environmental
| Operating Temperature |
-40 to 140°F / -40 to 60°C
|
| Operating Humidity |
0 to 90% (Non-Condensing)
|
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant
*Manufacturer Testing: IP67 |
General
| Inputs/Outputs |
1 x BNC
1 x Power |
| Illumination |
White LED up to 65.6' / 20 m
|
| Supported Languages |
English
|
| Material of Construction |
Metal (Unspecified Type)
|
| Dimensions |
ø: 3.4 x H: 3.1" / ø: 85.1 x H: 77.6 mm
|
| Weight |
0.7 lb / 328 g
|
Packaging Info
| Package Weight |
0.91 lb
|
| Box Dimensions (LxWxH) |
5 x 4.7 x 3.6"
|
