Description
Hikvision DS-2CD2T87G2-LSU/SL Overview

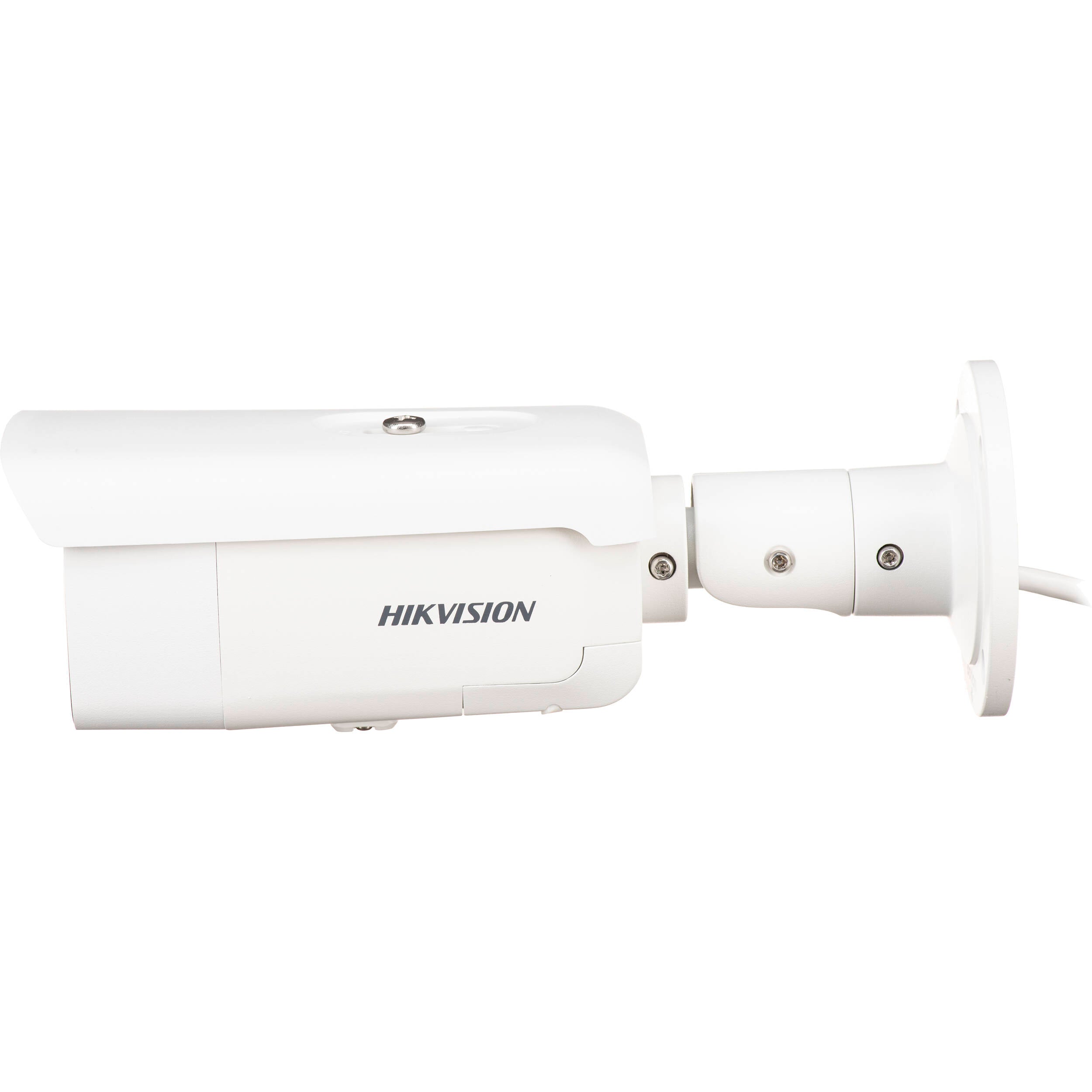

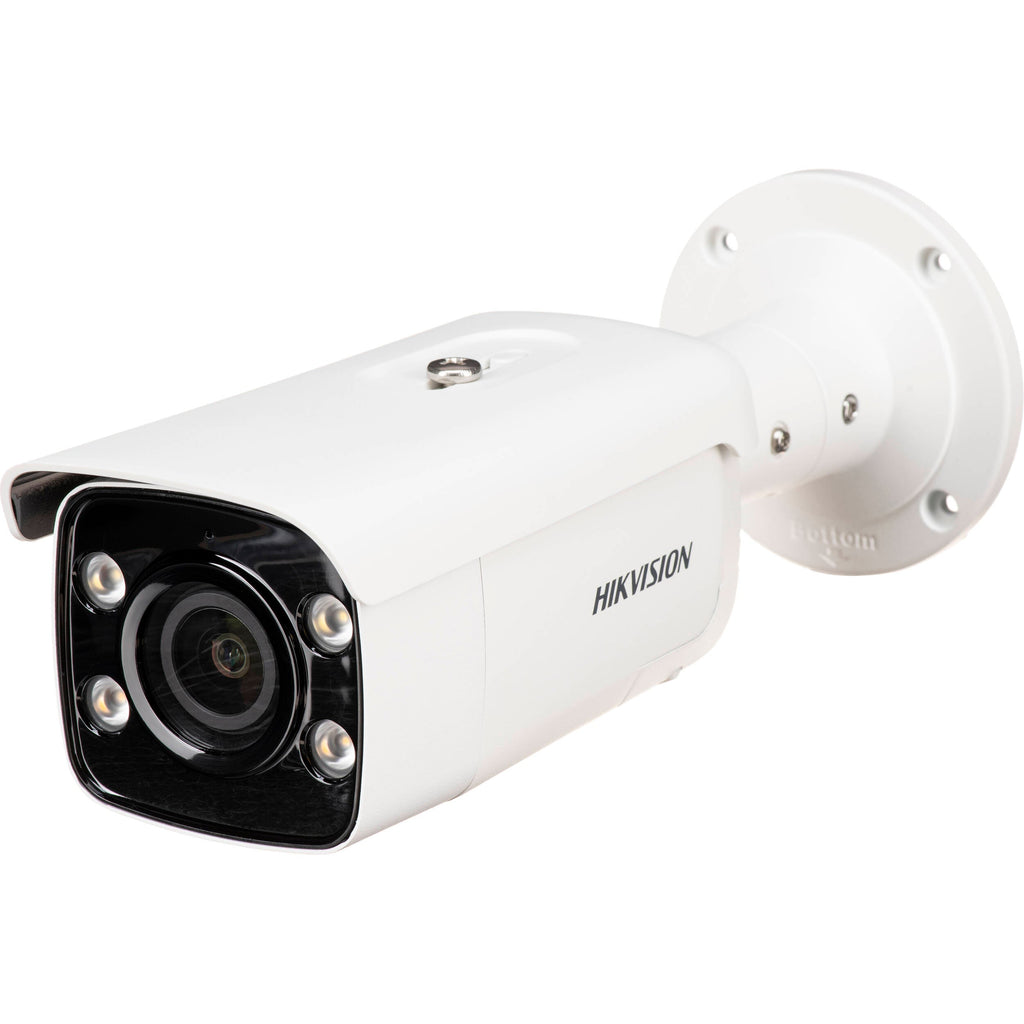

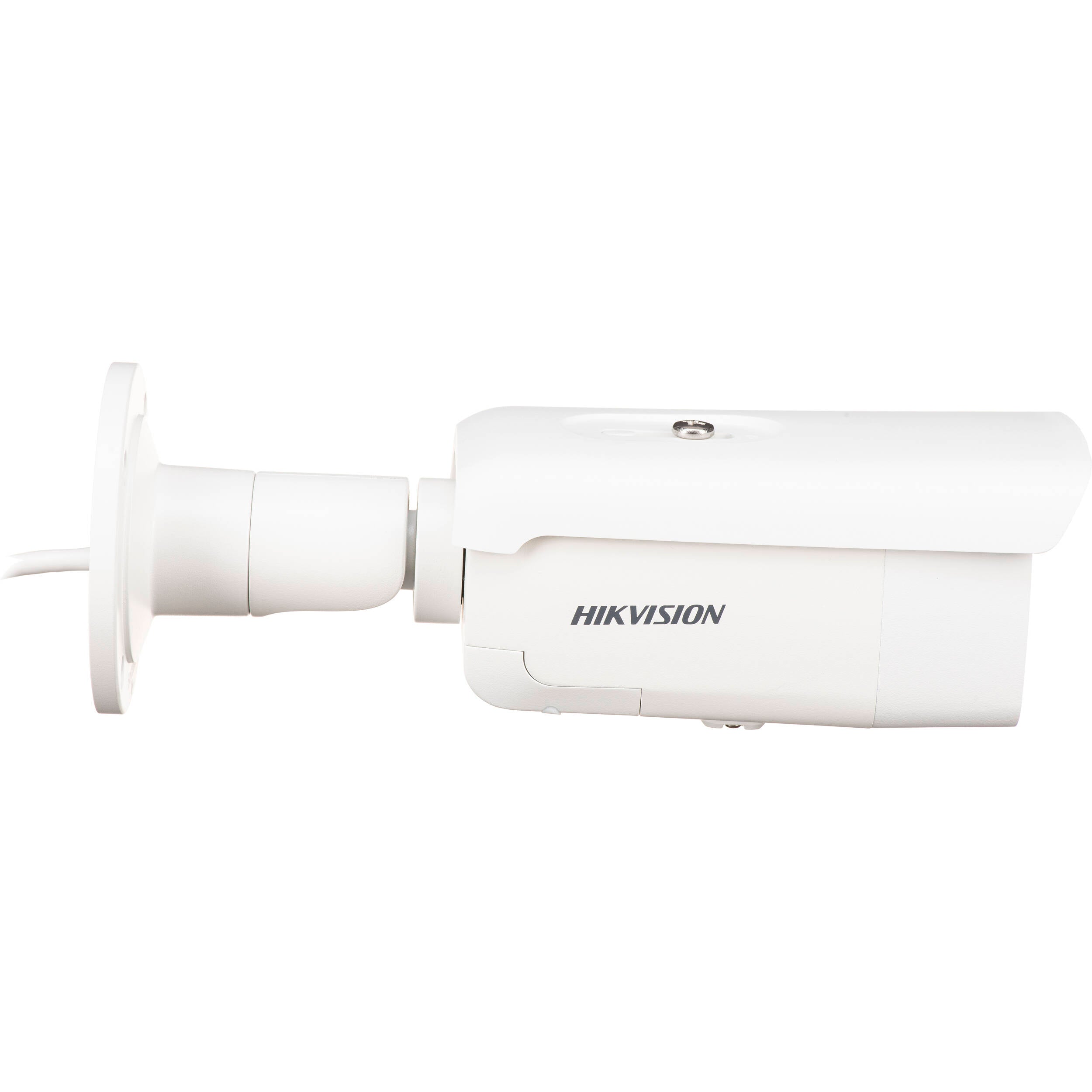

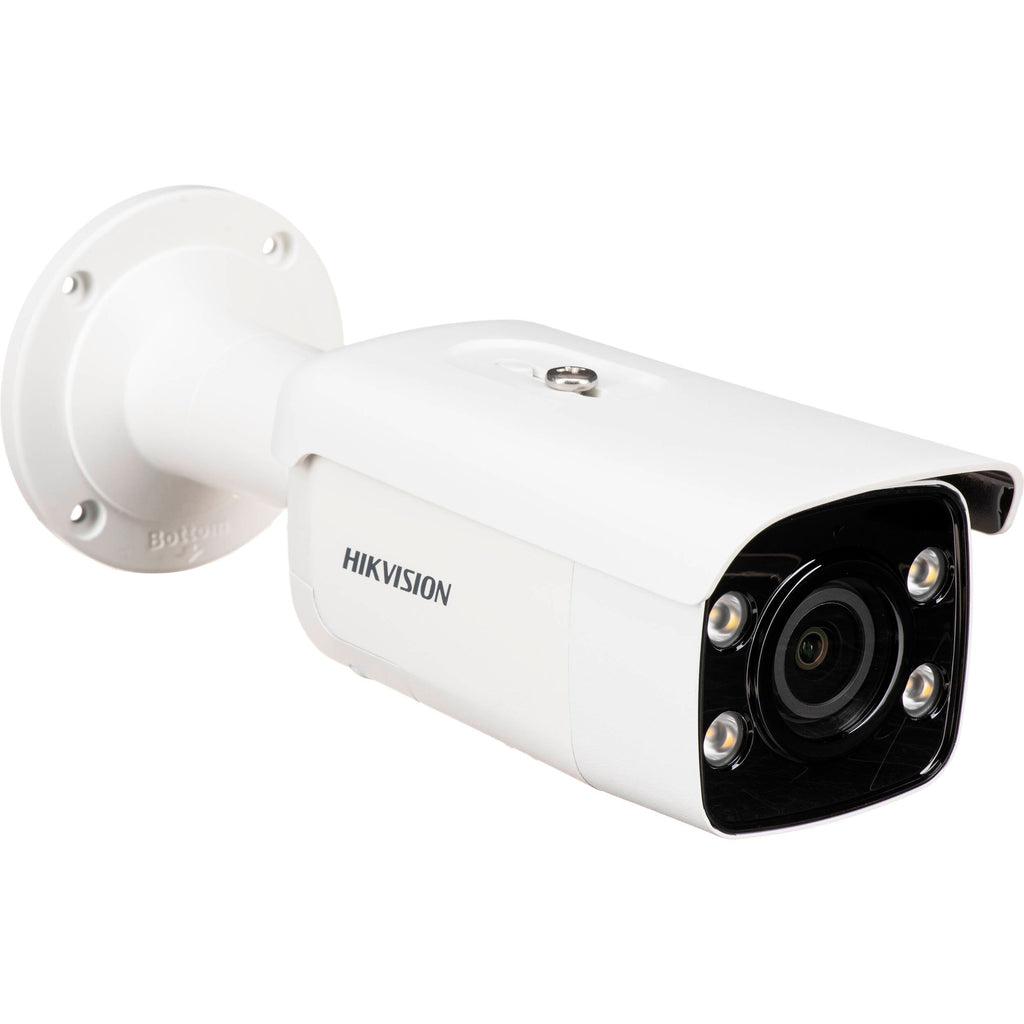

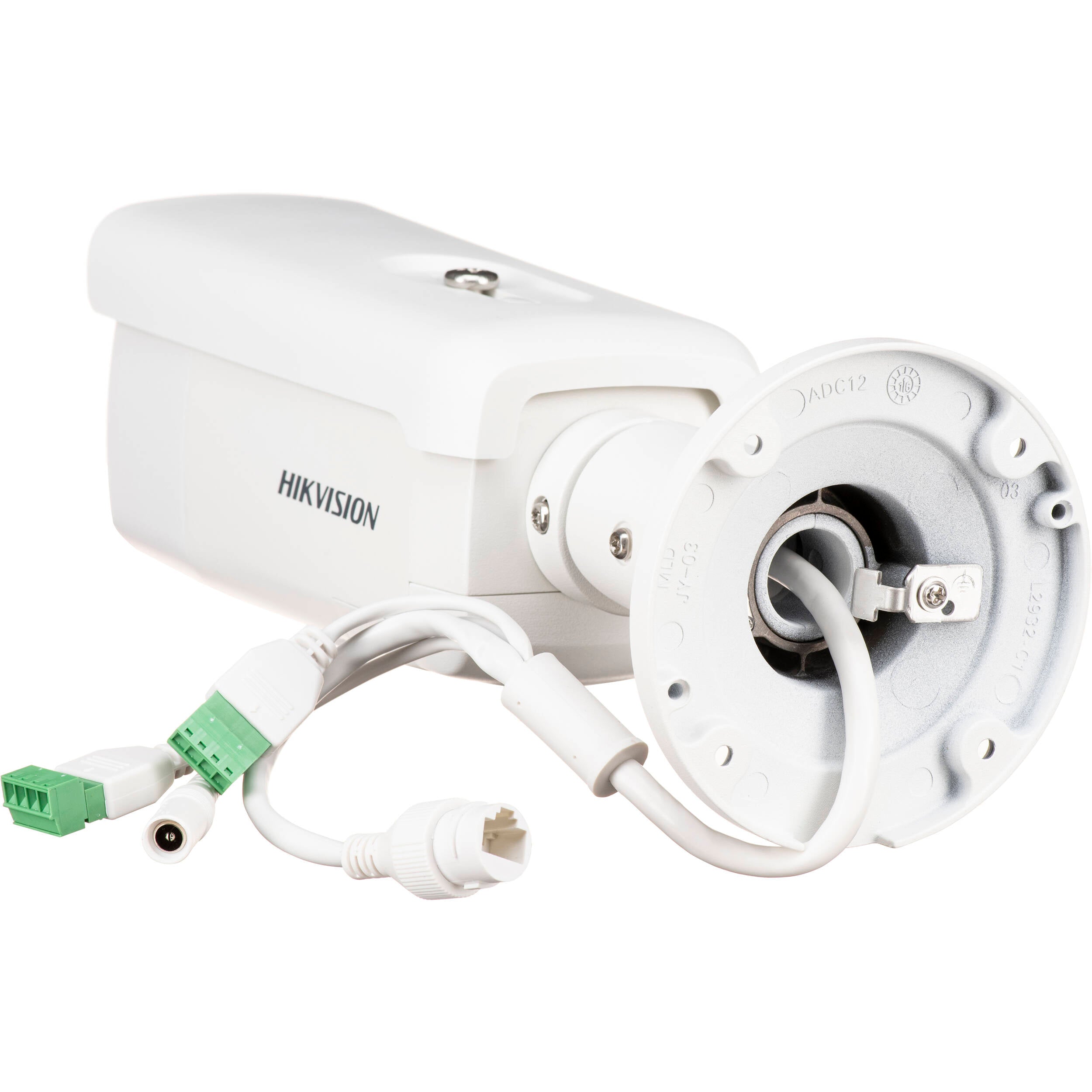

Monitor an indoor or outdoor area with the ColorVu DS-2CD2T87G2-LSU/SL 8MP Network Bullet Camera from Hikvision. This unit uses a 1/1.2" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at up to 24 fps. A supplemental white light provides up to 197' of illumination for recording full color video in low-light conditions. The camera's 2.8mm fixed lens delivers a 102° horizontal field of view. Two-way audio is possible thanks to a built-in speaker and microphone, along with an audio input and output. An active strobe light and audio alarm keep intruders at bay. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure for safe outdoor use.
ColorVu technology provides vivid and colorful images 24/7
Day and night switching
H.265+, H.265, H.264+, H.264, and MJPEG video compressions
Triple streaming
CBR and VBR
Scalable Video Coding (SVC)
Three-axis angle adjustments
15' to infinity depth of focus
?52 dB SNR
130 dB wide dynamic range
3D-DNR, backlight compensation, and highlight compensation
Image settings include; rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, and white balance
Image parameters switch
Region of interest supports one fixed region for main stream and sub-stream separately
Eight programmable polygon privacy masks
Analytics include; motion detection (supports human and vehicle target classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, and face capture
General functions include; anti-flicker, heartbeat, password reset via email, and pixel counter
Reset key
Up to 32 users with three host levels (admin, operator, and user)
Up to six channels in simultaneous live view
100M self-adaptive RJ45 Ethernet port
Alarm input and output
Built-in speaker and microphone
Audio input and output
Compatible with Internet Explorer 10 and 11 (plug-in required), Chrome 57 or higher, Firefox 52 or higher, iOS, Android, iVMS-4200, Hik-Connect, and Hik-Central
Network-attached storage support
DORI Ranges
315' detection range
125' observation range
62' recognition range
30' identification range
UPC: 842571141610
Guides & Manuals
Hikvision DS-2CD2T87G2-LSU/SL Specs
Camera
| Sensor | 8 MP 1/1.2" CMOS |
| Lens Mount | M |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1 |
| Lens Field of View | Horizontal: 102° Vertical: 52° Diagonal: 124° |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
Video
| Streaming Resolution | 3840 x 2160 at 24 fps (16 Mb/s ) 3200 x 1800 at 30 fps |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S, & T, ISAPI, SDK |
| Analytics | Motion Detection (Human and Vehicle Targets Classification), Video Tampering Alarm, Exception, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Scene Change Detection, Face Capture |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | Android iOS *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
Hardware
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 11.5 W |
Environmental
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
General
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | White LED up to 196.9' / 60 m |
| Video Management Software | iVMS-4200, Hik-Connect, Hik-Central |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | H: 3.6 x W: 3.7 x L: 11.4" / H: 91.2 x W: 93.5 x L: 289.9 mm |
| Weight | 2.8 lb / 1255 g |
Packaging Info
| Package Weight | 3.62 lb |
| Box Dimensions (LxWxH) | 15.1 x 6.2 x 6" |
