Description
Hikvision DS-2CD2787G2T-LZS Overview

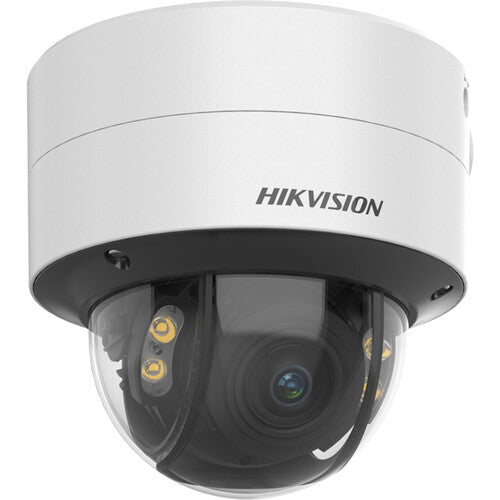

Monitor an indoor or outdoor area with the ColorVu DS-2CD2787G2T-LZS 8MP Network Dome Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 4K UHD resolution video at 24 fps. A supplemental white light provides up to 131' of illumination for recording full color video in low-light conditions. The camera's 2.8-12mm motorized varifocal lens delivers a 103.3 to 40° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot supports microSD cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
ColorVu technology provides vivid and colorful images 24/7 in even low light
Day and night switching
Triple streaming
CBR and VBR
Scalable Video Coding (SVC) for H.264 and H.265 encoding
7.9' to infinity depth of field
?52 dB S/N ratio
130 dB wide dynamic range
3D-DNR, backlight compensation, and highlight compensation
Image settings include: rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance
Region of interest supports one fixed region for main stream and sub-stream
Privacy masking for up to four regions
Analytics include: motion detection (supports human and vehicle targets classification), video tampering alarm, video tampering alarm, exception, line crossing detection, intrusion detection, region entrance detection, region exiting detection (supports human and vehicle targets classification), scene change detection, and face capture
General functions include: heartbeat, anti-banding, mirror, flash log, password reset via email, and pixel counter
Reset key
Up to 32 users with three host levels (admin, operator, and user)
Up to six channels in simultaneous live view
Environment noise filtering
Compatible with Internet Explorer 10 & 11 (plug-in required), Chrome 57 or higher, Firefox 52 or higher, Edge 89 or higher, iOS, Android, iVMS-4200, Hik-Connect, and Hik-Central
UPC: 842571147605
In the Box
- Hikvision ColorVu DS-2CD2787G2T-LZS 8MP Outdoor Network Dome Camera
- Limited 3-Year Manufacturer Warranty
Hikvision DS-2CD2787G2T-LZS Specs
Key Specs
| Sensor |
8 MP 1/1.8" CMOS
|
| Focal Length |
2.8 to 12mm
|
| Lens Field of View |
Horizontal: 103.3 to 40°
Vertical: 52.7 to 22.3° Diagonal: 127.9 to 46.1° |
| Power Source |
DC, PoE+ 802.3at (30 W)
|
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant
*Manufacturer Testing: IP67 |
| Illumination |
White LEDs up to 131.2' / 40 m
|
Camera
| Sensor |
8 MP 1/1.8" CMOS
|
| Focal Length |
2.8 to 12mm
|
| Maximum Aperture |
f/1
|
| Zoom |
Optical: 4.3x
|
| Lens Field of View |
Horizontal: 103.3 to 40°
Vertical: 52.7 to 22.3° Diagonal: 127.9 to 46.1° |
| IR Cut Filter |
Mechanical
|
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.0008 Lux
|
| Shutter Speed |
1/100000 to 1/3 Seconds
|
| Camera Angle Adjustment |
Horizontal: 0 to 355°
Vertical: 0 to 75° Rotation: 0 to 355° |
| DORI Coverage |
With 2.8 to 12mm Lens:
Detect: 314.9 Up to 524.9' / 96.0 Up to 160.0 m Observe: 125 Up to 208.3' / 38.1 Up to 63.5 m Recognize: 62.9 Up to 104.9' / 19.2 Up to 32.0 m Identify: 31.5 Up to 52.5' / 9.6 Up to 16.0 m |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Hik-Connect, Hik-Central |
Video
| Streaming Resolution |
3840 x 2160 at 24 fps (16 Mb/s )
3200 x 1800 at 30 fps |
| Supported Video Compression |
H.264, H.264+, H.265, H.265+, MJPEG
|
| Multi-View Streaming |
Yes, 3 Streams
|
| Automatic Gain Control |
Yes
|
Audio
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
|
| Audio I/O |
Input:
1 x 2-Pin Terminal Block Output: 1 x 2-Pin Terminal Block |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark
|
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
|
System Integration
| Application Programming Interface (API) |
ONVIF Profiles G, S & T, ISAPI, SDK, ISUP
|
| Analytics |
Motion Detection (Supports Human and Vehicle Targets Classification), Video Tampering Alarm, Video Tampering Alarm, Exception, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection (Supports Human and Vehicle Targets Classification), Scene Change Detection, Face Capture
|
| Built-In Installation Aids |
Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Data Streaming |
Yes
|
| Alarm I/O |
1 / 1
|
Hardware
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
|
| Internal Storage |
No
|
| External Storage Options |
NAS
|
Power
| Power Source |
DC, PoE+ 802.3at (30 W)
|
| Power Consumption |
DC: 10.8 W
PoE: 12.9 W |
Environmental
| Operating Temperature |
-22 to 140°F / -30 to 60°C
|
| Startup Temperature |
-22 to 140°F / -30 to 60°C
|
| Storage Temperature |
-22 to 140°F / -30 to 60°C
|
| Operating Humidity |
0 to 95% (Non-Condensing)
|
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant
*Manufacturer Testing: IP67 |
| IK Rating |
IK10
|
General
| Inputs/Outputs |
1 x RJ45
1 x Power |
| Illumination |
White LEDs up to 131.2' / 40 m
|
| Video Management Software |
iVMS-4200, Hik-Connect, Hik-Central
|
| Supported Languages |
Brazilian Portuguese
Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications |
FCC (Part 15 Class B), ICES-003 Class A, RCM, RoHS, UL, WEEE, as per Manufacturer
|
| Material of Construction |
Metal (Unspecified Type)
|
| Dimensions |
ø: 6.1 x H: 6.0" / ø: 155.0 x H: 152.0 mm
|
| Weight |
3.4 lb / 1525 g
|
Packaging Info
| Package Weight |
4.395 lb
|
| Box Dimensions (LxWxH) |
9 x 8.8 x 8.6"
|
