Description

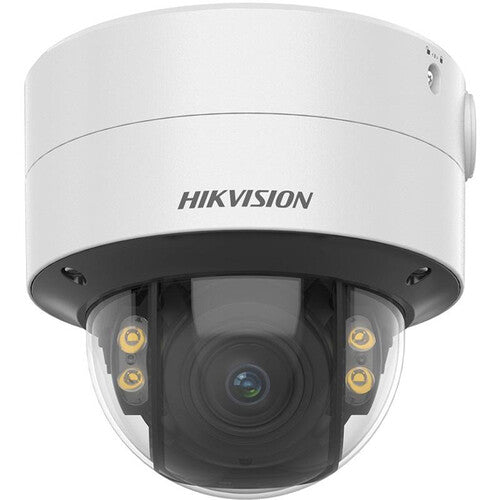

Hikvision DS-2CD2747G2-LZS Overview
Monitor an indoor or outdoor area with the ColorVu DS-2CD2747G2-LZS 4MP Network Dome Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. A supplemental white light provides up to 131' of illumination for recording full color video in low-light conditions. The camera's 3.6-9mm motorized varifocal lens delivers a 92.3 to 48° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
ColorVu technology provides vivid and colorful images 24/7 in even low light
Day and night switching
H.265+, H.265, H.264+, H.264, and MJPEG video compressions
Triple streaming
CBR and VBR
Scalable Video Coding (SVC) for H.264 and H.265 encoding
Slow shutter support
2.5x optical zoom
Three-axis angle adjustment (0 to 355° horizontal pivot, 0 to 75° vertical pivot, and 0 to 355° rotation)
?52 dB S/N ratio
130 dB wide dynamic range
3D-DNR, backlight compensation, and highlight compensation
Image settings include; rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance
Region of interest supports one fixed region for main stream and sub-stream separately
Analytics include; motion detection (supports human and vehicle targets classification), video tampering alarm, exception, scene change detection, face capture, and perimeter protection (line crossing detection, intrusion detection, region entrance detection, region exiting detection)
General functions include; anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, and pixel counter
Reset key
Up to 32 users with three host levels (admin, operator, and user)
Up to six channels in simultaneous live view
100M self-adaptive RJ45 Ethernet port
Alarm input and output
Audio input and output
Environment noise filtering
Compatible with Internet Explorer 10 or higher (plug-in required), Chrome 57 or higher, Firefox 52 or higher, iOS, Android, iVMS-4200, Hik-Connect, and HikCentral
Network-attached storage support
DORI Ranges
226 to 407' detection range
90 to 162' observation range
45 to 81' recognition range
23 to 41' identification range
UPC: 842571138672
Hikvision DS-2CD2747G2-LZS Specs
Camera
| Sensor | 4 MP 1/1.8" CMOS |
| Focal Length | 3.6 to 9mm |
| Maximum Aperture | f/1 |
| Zoom | Optical: 2.5x |
| Lens Field of View | Horizontal: 92.3 to 48° Vertical: 48.4 to 27° Vertical: 112.2 to 55° |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
Video
| Streaming Resolution | 2688 x 1520 at 30 fps (8 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK |
| Analytics | Motion Detection (Supports Human and Vehicle Targets Classification), Video Tampering Alarm, Exception, Scene Change Detection, Face Capture, Perimeter Protection (Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection: Supports Human and Vehicle Targets Classification) |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
Hardware
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 10.8 W PoE: 12.9 W |
Environmental
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
General
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | White LEDs up to 131.2' / 40 m |
| Video Management Software | iVMS-4200, Hik-Connect, HikCentral |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | ø: 6.1 x H: 6.0" / ø: 155.0 x H: 152.0 mm |
| Weight | 3.3 lb / 1520 g |
Packaging Info
| Package Weight | 4.36 lb |
| Box Dimensions (LxWxH) | 9.4 x 8.6 x 7.9" |
