Hikvision IDS-7204HUHI-M1/P Overview

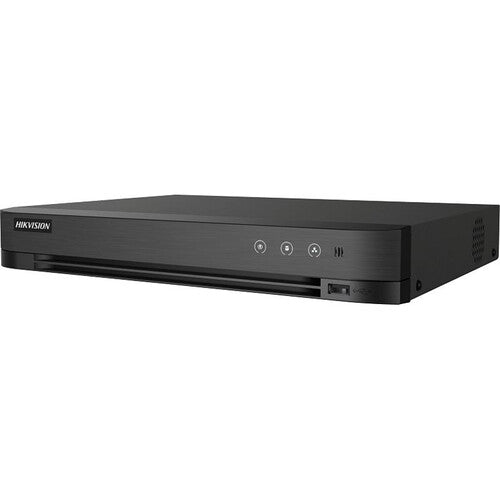

Record from and manage up to four local analog cameras at resolutions up to 8MP with the AcuSense iDS-7204HUHI-M1/P TurboHD 4-Channel 8MP Analog HD DVR (No HDD) from Hikvision. Additionally, this DVR supports up to four IP cameras if Enhanced IP Mode is enabled and no analog cameras are used. It is equipped with a SATA port that supports HDD storage up to 10TB (available separately). H.265+, H.264+, H.265, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This DVR features motion detection and perimeter protection with human/vehicle analysis. It has VGA and HDMI video outputs to connect to external monitors.
Supports Power over Coax (PoC) technology
Supports IP cameras up to 8MP
Deep learning-based motion detection and perimeter protection (line crossing and intrusion detection)
Supports multiple VCA (Video Content Analytics) events for both analog and IP cameras
4-channel synchronous playback support
Dual stream support
H.265+/H.264+ and H.265/H.264 video compressions
Simultaneous HDMI and VGA outputs
4 x alarm inputs and 1 x alarm output
1 x RS-485 port
2 x USB 2.0
Compatible with Wi-Fi dongles (available separately)
UPC: 842571145489
Hikvision IDS-7204HUHI-M1/P Specs
General
| Signal | AHD, Analog, HD-CVI, HD-TVI, IP |
| Number of Channels | 4 |
| Playback Resolution | HDMI: 2560 x 1440 at 60 Hz VGA: 1080p at 60 Hz CVBS: 704 x 576 (PAL) 704 x 480 (NTSC) |
| Recording Resolution | 8 MP |
| PTZ Support | Yes |
| Bit Rate | 32 kb/s to 10 Mb/s |
| IP Camera Support | 4 |
| Dual Streaming | Yes |
| Encoding Resolution | Main: 1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP, 5 MP, 8 MP Sub Stream: 4CIF, CIF, WD1 |
| 2-Way Audio | Yes |
Connectivity
| A/V Inputs/Outputs | AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI: 4 x BNC Input (1 V p-p, 75 Ohm) 1 x BNC Output 1 x HDMI 1 x VGA 4 x RCA Audio Input (2 V p-p, 1 Kilohm) 1 x RCA Audio Output (1 V p-p, 1 Kilohm, Linear) |
| Communication Inputs/Outputs | 1 x RJ45 10/100 Mb/s Ethernet 1 x RS-485 (Half-Duplex) 1 x USB-A 2.0 (Front) 1 x USB-A 2.0 (Rear) |
| Audio Inputs/Outputs | 4 Inputs 1 Output |
| System Connection | 1 x SATA |
| Wi-Fi | Yes |
| Remote Connections | 32 |
| Network Protocols | DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI |
| Network Bandwidth | 96 Mb/s |
| Max Frame Rate | 30 fps (1080p) |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | G.711U |
System
| Installed Drive | None |
| Max Capacity Supported | 10 TB (Total) 10 TB (Each Drive) |
| Recording Modes | Analytics, Motion |
| Search Modes | Smart Search |
Notifications
| Alarm Inputs/Outputs | 4 Inputs 1 Output |
| Event Trigger | Analytics, Motion |
Electrical
| Power Consumption | Without HDD: 48 VDC at 1.35 A (10 W) |
| Power over Coax | Yes |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
Physical
| Built-In Display | None |
| Dimensions (W x D x H) | 12.4 x 9.5 x 1.8" / 315.0 x 242.0 x 45.0 mm |
| Weight | 4.9 lb / 2.2 kg (Without HDD) |
Packaging Info
| Package Weight | 4.6 lb |
| Box Dimensions (LxWxH) | 16.4 x 12 x 3.3" |
