Description
Hikvision DS-2CD2E43G2-U 2.8MM Overview

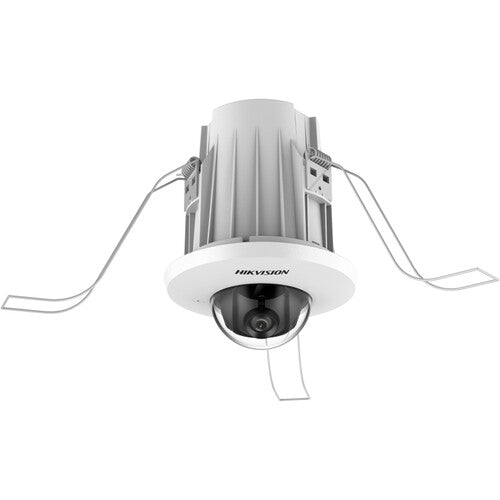

Monitor a room or hallway with the AcuSense DS-2CD2E43G2-U 4MP Network In-Ceiling Mini Dome Camera from Hikvision. This unit uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. The camera's 2.8mm fixed lens delivers a 103° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately).
UPC: 842571141047
Hikvision DS-2CD2E43G2-U 2.8MM Specs
Camera
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Lens Field of View | Horizontal: 103° Vertical: 55° Diagonal: 122° |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Vertical: 0 to 75° |
Video
| Streaming Resolution | 2688 x 1520 at 30 fps (8 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | One-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | Yes |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G & S, ISAPI, SDK, ISUP |
| Analytics | Motion Detection (Human/Vehicle Targets Classification), Video Tampering Alarm, Exception, Face Detection, Perimeter Protection (Line Crossing, Intrusion) |
| Built-In Installation Aids | Pixel |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
Hardware
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 3.2 W PoE: 4.2 W |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Startup Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
General
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Video Management Software | iVMS-4200, Hik-Connect, Hik-Central |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Material of Construction | Plastic |
| Dimensions | ø: 3.7 x H: 4.6" / ø: 93.9 x H: 117.5 mm |
| Weight | 0.3 lb / 155 g |
Packaging Info
| Package Weight | 0.71 lb |
| Box Dimensions (LxWxH) | 7.2 x 5.3 x 5.3" |
