Description

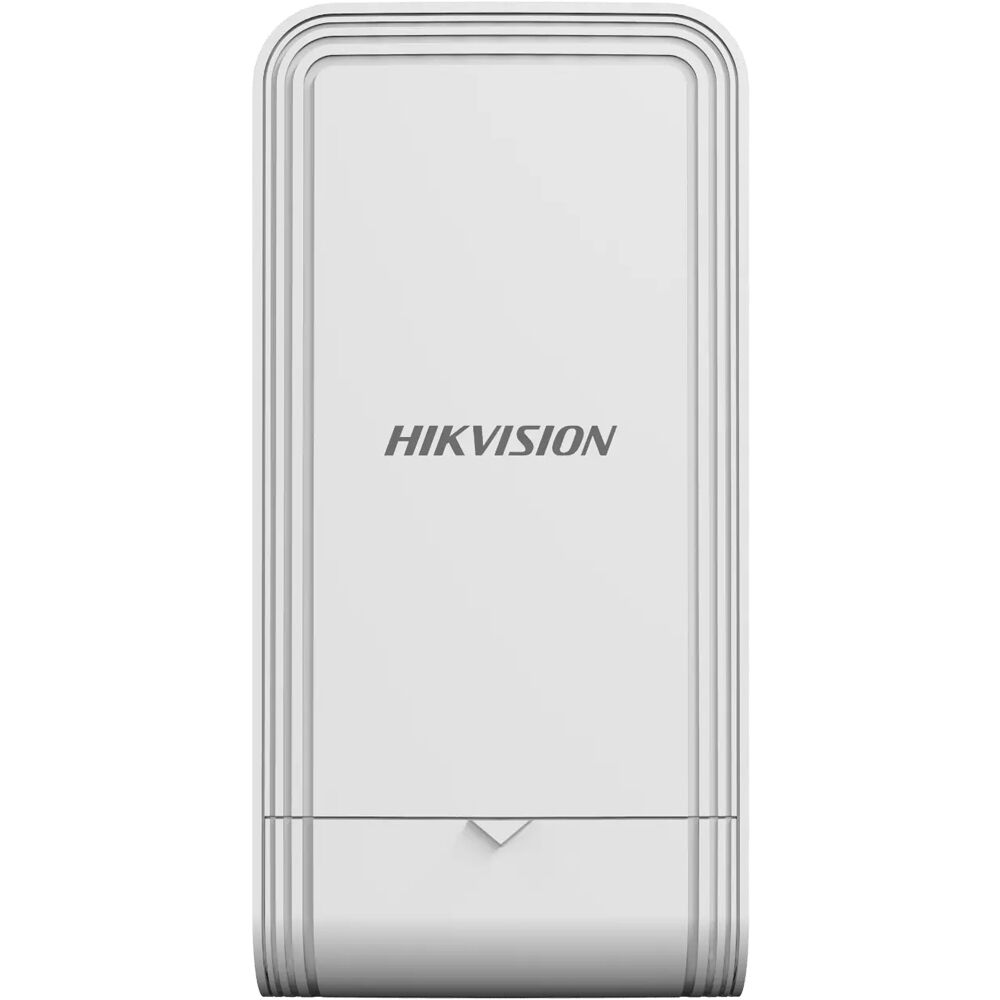

Hikvision DS-3WF02C-5AC/O Overview
The 5GHz 867 Mb/s Outdoor Wireless Bridge from Hikvision can be used in wireless video security, railway, transportation, power, and other industries, for applications that include wireless video/data transmission, wireless coverage, carrier wireless backbone network construction, Wi-Fi wireless coverage, rural information construction, and wireless network coverage. It carries multi-channel HD video up to 3.1 miles.
Key Features
- Gigabit LAN ports
- TDMA supported
- Quick matching through DIP switch
- Visualized topology management
UPC: 842571147070
In the Box
- Hikvision 5GHz 867 Mb/s Outdoor Wireless Bridge
Hikvision DS-3WF02C-5AC/O Specs
Key Specs
| Wireless Frequency |
2.4 GHz, 5 GHz
|
| Throughput |
867 Mb/s Total
|
| Inputs/Outputs |
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
|
Wireless
| Wireless Frequency |
2.4 GHz, 5 GHz
|
| Sensitivity |
-58 to -84 dBm
|
| Antenna Gain |
12 dBi
|
| Transmit Power |
22 dBm
|
| Antenna Placement |
Internal
|
| Bluetooth |
No
|
| Throughput |
867 Mb/s Total
|
Interface
| Inputs/Outputs |
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
|
Security
| Wireless Security |
WPA2-PSK
|
Management
| Mobile App Compatible |
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Hardware
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11n
|
Electrical
| DC Input Power |
12 VDC at 1 A
|
Environmental
| Operating Temperature |
-22 to 158°F / -30 to 70°C
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
| Operating Humidity |
5 to 95% (Non-Condensing)
|
| Storage Humidity |
5 to 95% (Non-Condensing)
|
General
| Certifications |
UL, CB, IEC, CE, RCM, RoHS, WEEE, REACH, FCC
|
| Mount Options |
Pole
|
| Range |
3.1 Miles / 5 km
|
| Dimensions |
7.4 x 3.6 x 2.3" / 187 x 92 x 58 mm
|
| Weight |
0.66 lb / 0.3 kg
|
Packaging Info
| Package Weight |
1.43 lb
|
| Box Dimensions (LxWxH) |
9.8 x 5.2 x 4.2"
|
