Description
Hikvision DS-K7M151-P Overview

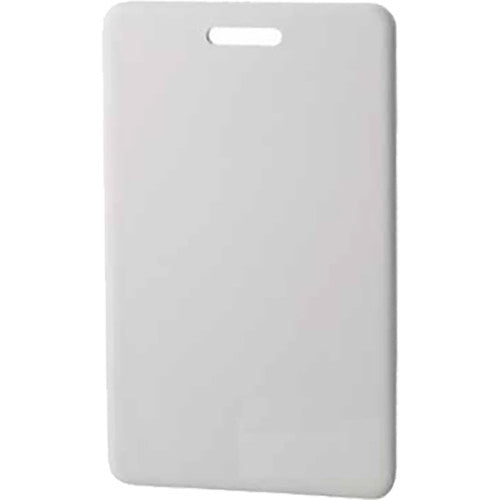

Designed for use with 125 kHz proximity readers, the off-white Clamshell Proximity Card from Hikvision, available here in a pack of 25, provides secure identity and access control via RFID technology. Compliance with the Wiegand communication protocol ensures compatibility with a wide range of access control systems. The clamshell proximity card is a maintenance-free passive device�no need for batteries.
UPC: 842571118445
In the Box
- Hikvision 125 kHz Clamshell Proximity Card (25-Pack)
- Limited 3-Year Manufacturer Warranty
Hikvision DS-K7M151-P Specs
| Technology | Proximity |
| Frequency | 125 kHz |
| Operation | Passive (No Battery) |
| Formats | Wiegand (26-Bit and Custom Formats) and ABA Track II Magnetic Stripe (Clock and Data) |
| Material | ABS |
| Slot | Standard, Vertical |
| Marking | Date Code and ID |
| Read Range | Up to 8" / 202 mm |
| Operating Temperature | -35 to 122°F / -37 to 50°C |
| Humidity | 0 to 95%, Non-Condensing |
| Dimensions | 2.2 x 3.4 x 0.06" / 56.0 x 86.0 x 1.5 mm |
| Weight | 0.3 oz / 9 g |
Packaging Info
| Package Weight | 0.57 lb |
| Box Dimensions (LxWxH) | 3.8 x 2.3 x 2" |
