Description

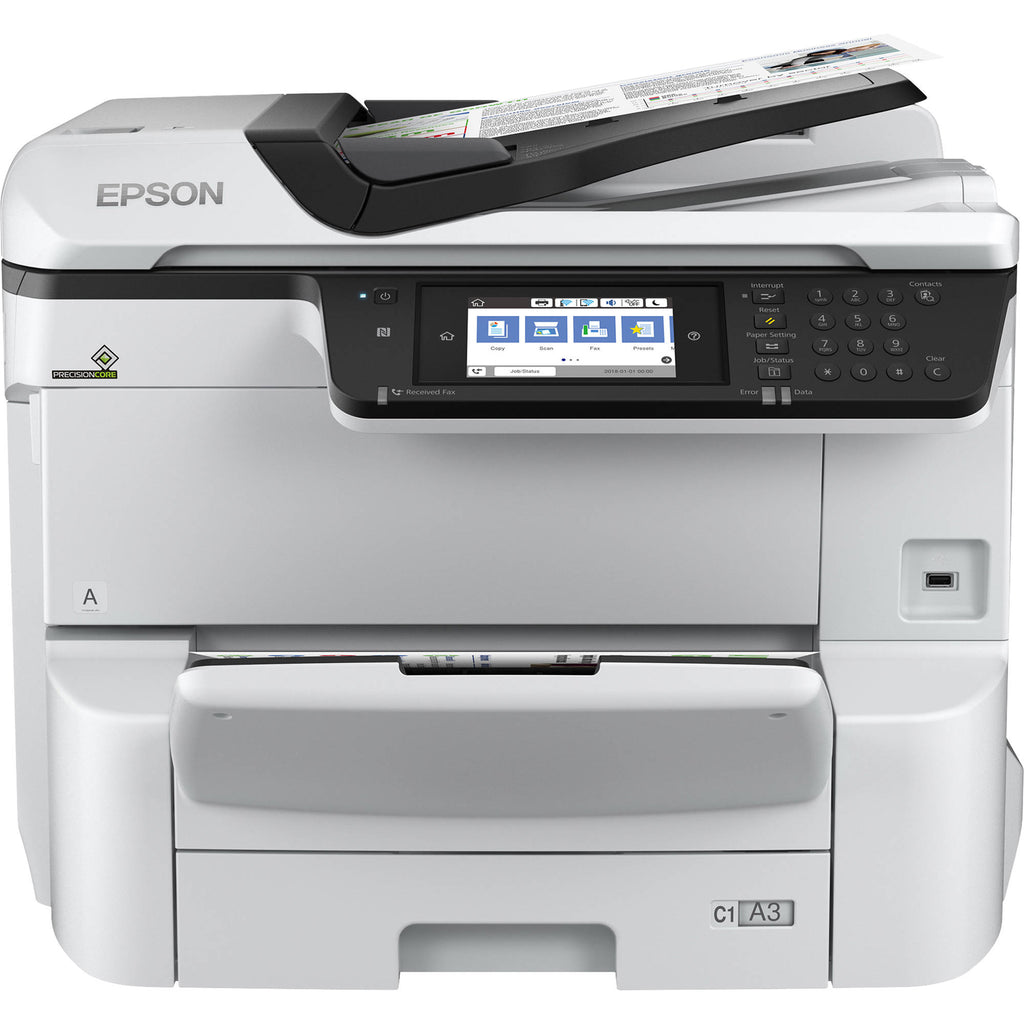

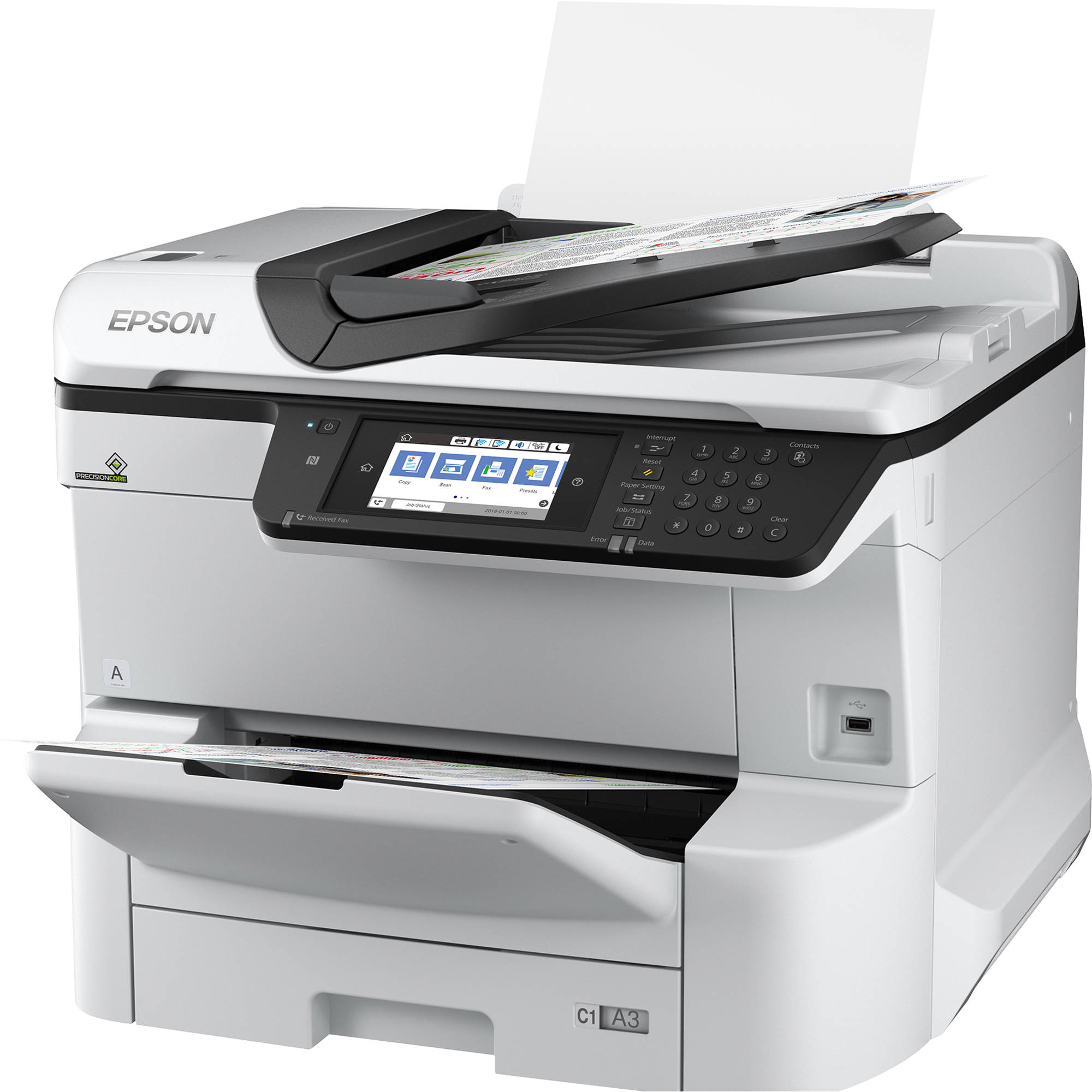

Epson WF-C8690 Overview
Designed for busy workgroups, the WorkForce Pro WF-C8690 A3 Color MFP with PCL/PostScript from Epson provides you with quick and efficient printing, scanning, copying, and faxing. Users will enjoy sharp prints with a 4800 x 1200 dpi resolution, and this workhorse provides a fast 24 ppm print speed for black and color documents, and duplex printing is available as well at speeds of 16 ppm for black and color documents. Draft mode is also available for an even faster 35 ppm in black and color. Additionally, a variety of different document sizes are easily handled from small 3 x 5" cards to large 13 x 47.5" banners.

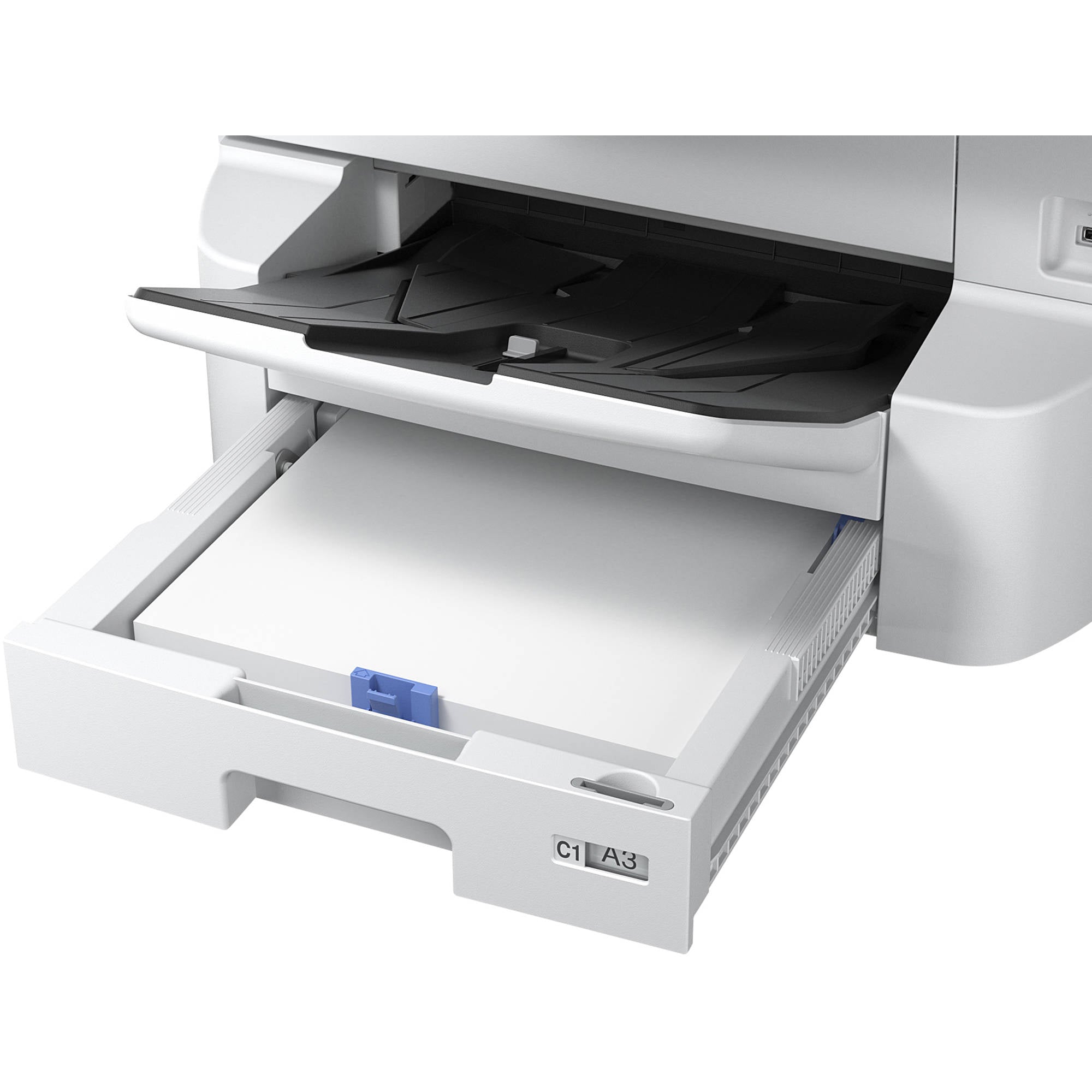

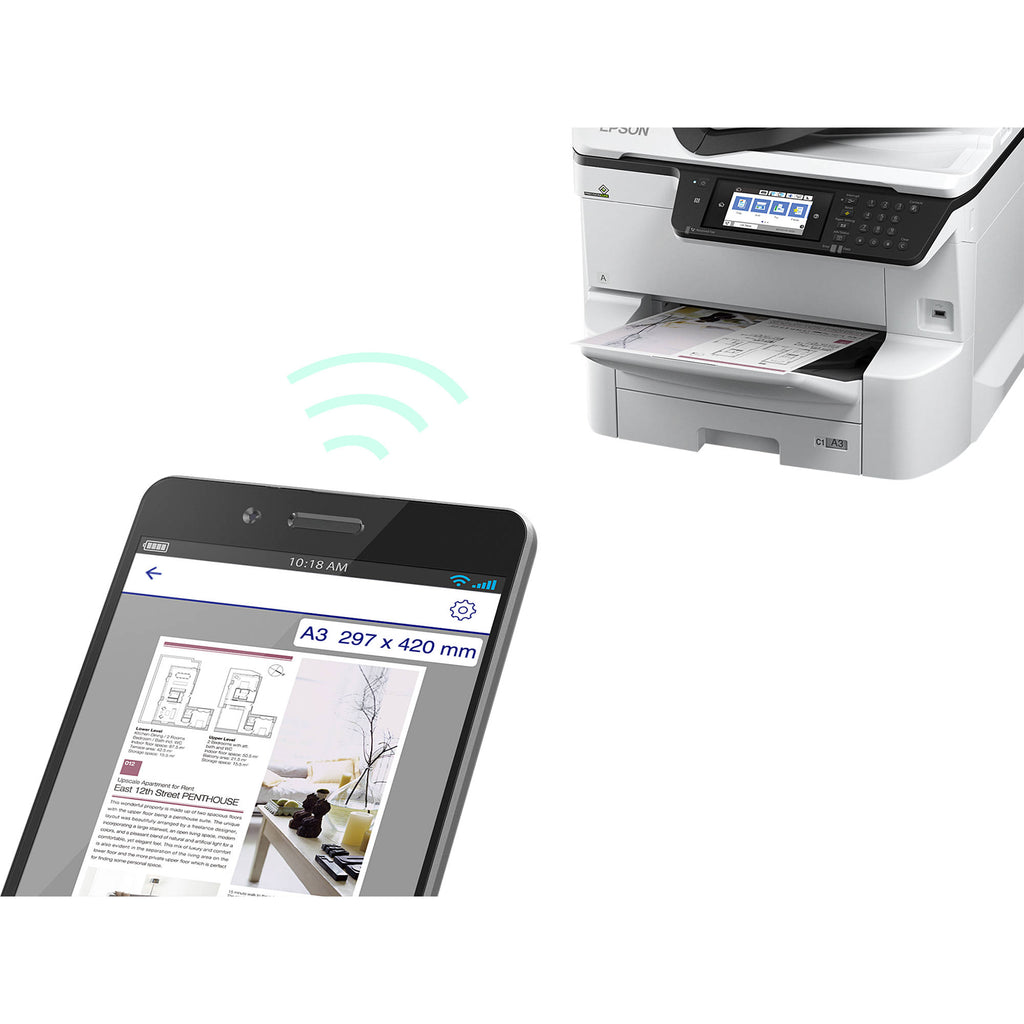

The WorkForce Pro WF-C8690 offers a few ways of handling media, including a 250-sheet standard input tray, an 85-sheet rear feed, and a 50-sheet ADF. It sports an 11.7 x 17" flatbed scanner and can handle scanning and copying up to 11.7 x 17" from the ADF. The scan unit features an optical resolution of 1200 dpi, ensuring crisp images and copies are produced, and up to 999 copies can be made at a time. For ease of use, the printer is equipped with a 5" color touchscreen, enabling fast, intuitive operation. A USB 3.0 connection is provided for cabled setups, and the printer is wireless and ethernet network ready as well. You can share one printer with multiple computers in your home or office, and wireless capabilities allow you to print from a smartphone or tablet via Epson Email Print, Epson iPrint Mobile App, Epson Remote Print, Apple AirPrint, Google Cloud Print, and Fire OS.
For managing a printer fleet the WorkForce Pro WF-C8690 is compatible with ISV and third-party software solutions for managing usage limitations, user authentication, and more. The printer is enabled for remote printer data collection, and the unit is compatible with MPS software solutions from PrintFleet, ECi, and others. Additional security features include PIN number certification for job release and user control access.
- Optical resolution of 1200 dpi for sharp and color-accurate scans
- Flatbed scanner works with media up to 11.7 x 17"
- 50-sheet duplexing ADF for documents up to 11.7 x 17"
- Copy features include auto 2-sided, preview, resize, ID copy, collate, and adjustable copy density

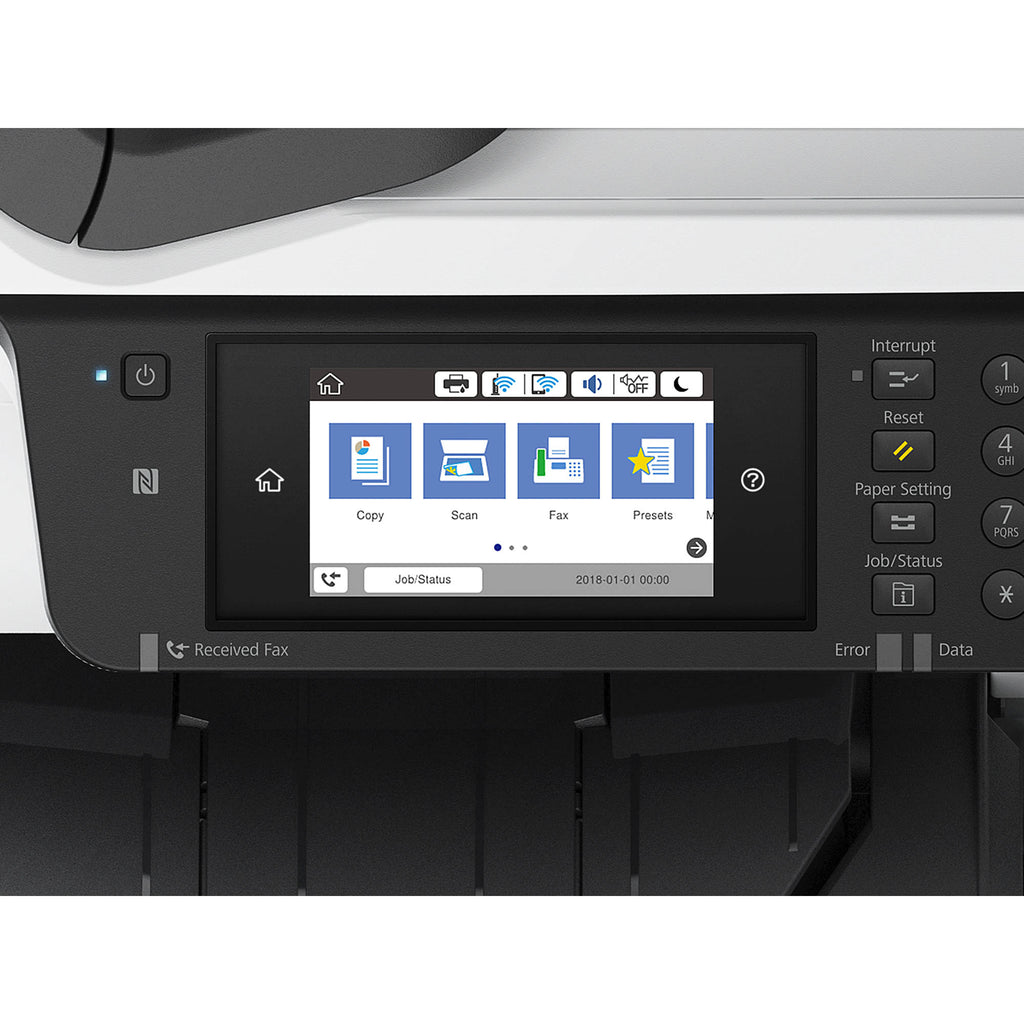

- Intuitive 5" color touchscreen for quick and easy navigation
- Security features include user control access and PIN number certification for job release
- Compatible with ISV and third-party software solutions for managing usage limitations, user authentication, and more
- Compatible with MPS software solutions from PrintFleet and ECi
- Supports PCL1 and PostScript 3
- 75,000-page monthly duty cycle
In the Box
- Epson WorkForce Pro WF-C8690 A3 Color MFP with PCL/PostScript

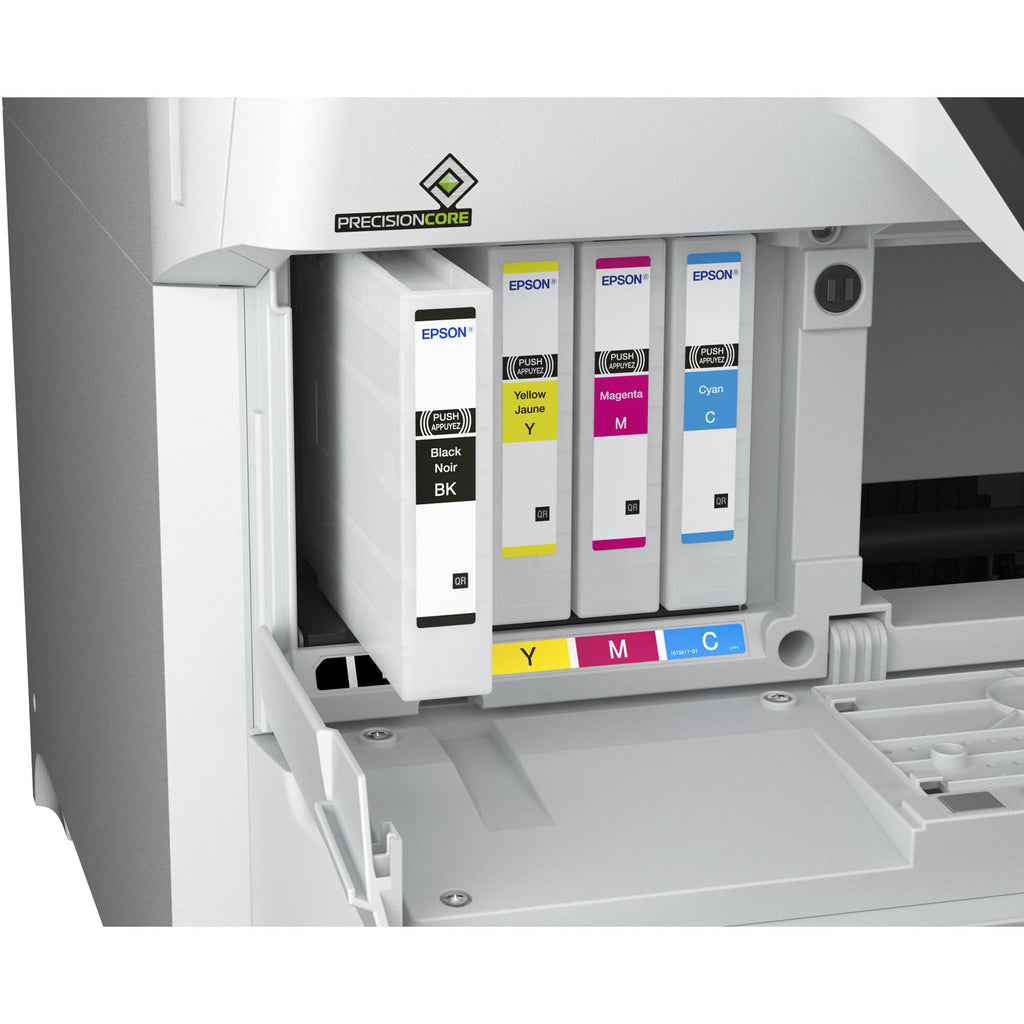

- Starter Cyan Ink Cartridge (~1100 Pages)
- Starter Magenta Ink Cartridge (~1100 Pages)
- Starter Yellow Ink Cartridge (~1100 Pages)
- Starter Black Ink Cartridge (~2200 Pages)
- Power Cord
- Limited 2-Year Warranty
Epson WF-C8690 Specs
| Functions | Print, Scan, Copy, Fax |
| Printing Technology | Inkjet |
| Color Type | Color |
| Configuration | 4 x Individual Cartridge |
| Ink Type | Pigment-Based |
| Ink Color | 1 x Cyan 1 x Magenta 1 x Yellow 1 x Black |
| Compatible Cartridges | Epson T902 |
| Print Resolution | Black: 4800 x 1200 dpi |
| Duplex Printing | Yes |
| Printer Language | Adobe PostScript 3, ESC/P-R, HP PCL 5 (Emulation), HP PCL 6 (Emulation) |
| Print Speed (By Time) | 24 ppm (Black) 24 ppm (Color) 16 ipm (Black Duplex) 16 ipm (Color Duplex) |
| Monthly Duty Cycle | 75,000 Pages 5000 Pages (Recommended) |
| Media Handling | 2 x Input Tray, Output Tray |
| Media Sizes | Input Tray 1 Minimum: 3.5 x 5" / 8.9 x 12.7 cm Maximum: 11.7 x 16.5" / 29.7 x 41.9 cm Input Tray 2 Minimum: 3 x 5" / 7.6 x 12.7 cm Maximum: 13 x 47.5" / 33 x 120.7 cm |
| Media Weight | Input Tray 1: 60 to 132 gsm / 16 to 48 lb |
| Paper Capacity | Input Tray 1: 250 x Sheet Input Tray 2: 85 x Sheet |
| Special Media Support | Envelopes |
| Type | Flatbed Scanner with Automatic Document Feeder (ADF) |
| Maximum Resolution | Flatbed 1200 dpi (Optical) 9600 dpi (Interpolated) |
| Scan Modes | Color, Grayscale, Monochrome |
| Color Depth | 30-Bit (Internal) 24-Bit (External) |
| Image Sensor | 1 x Contact Image Sensor (CIS) |
| Duplex Scanning | Yes |
| File Formats |
| Scan Sizes | ADF Minimum: 4.1 x 5.8" / 10.4 x 14.7 cm Maximum: 11.7 x 17" / 29.7 x 43.2 cm Flatbed Maximum: 11.7 x 17" / 29.7 x 43.2 cm |
| Paper Capacity | ADF: 50 x Sheet |
| Media Weight | ADF: 50 to 120 gsm / 14 to 34 lb |
| Number of Copies | Up to 999 Copies |
| Copy Speed | 22 cpm (Black) 21 cpm (Color) |
| Duplex Copying | Yes |
| Modem Transmission Speed | 33.6 kb/s |
| Fax Memory | 550 Pages |
| Speed Dial Capacity | 200 Numbers |
| Inputs/Outputs | RJ45, USB-B |
| Wireless | Wi-Fi |
| Direct Printing | Apple AirPrint, Google Cloud Print, Wi-Fi Direct, Epson Email Print, Epson Remote Print, Epson iPrint Mobile |
| OS Compatibility | Windows macOS *As of February, 2021: Check with manufacturer for the most up-to-date compatibility |
| Operating Temperature | 50 to 95°F / 10 to 35°C |
| Operating Humidity | 20 to 80% |
| Storage Temperature | -4 to 104°F / -20 to 40°C |
| Storage Humidity | 5 to 85% |
| Display Size | 5" |
| Display Type | Touchscreen |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.5 to 0.9 A |
| Power Consumption | 39 W (Maximum) 18 W (Ready) 1.4 W (Sleep) 0.25 W (Off) |
| Max Acoustic Noise | 51 dBA (Pressure) 6.8 BA (Power) |
| Dimensions (W x H x D) | 29.7 x 24.1 x 19.4" / 75.4 x 61.2 x 49.3 cm 34.1 x 24.1 x 22.5" / 86.6 x 61.2 x 57.1 cm (Maximum) |
| Weight | 101 lb / 45.8 kg |
| Package Weight | 138 lb |
| Box Dimensions (LxWxH) | 33.5 x 30.5 x 27" |
