Description
COUGAR MX350 MESH-X Overview
- 1Description
- 2Massive Expandability
- 3Strong Cooling
- 4Minimalist Beauty

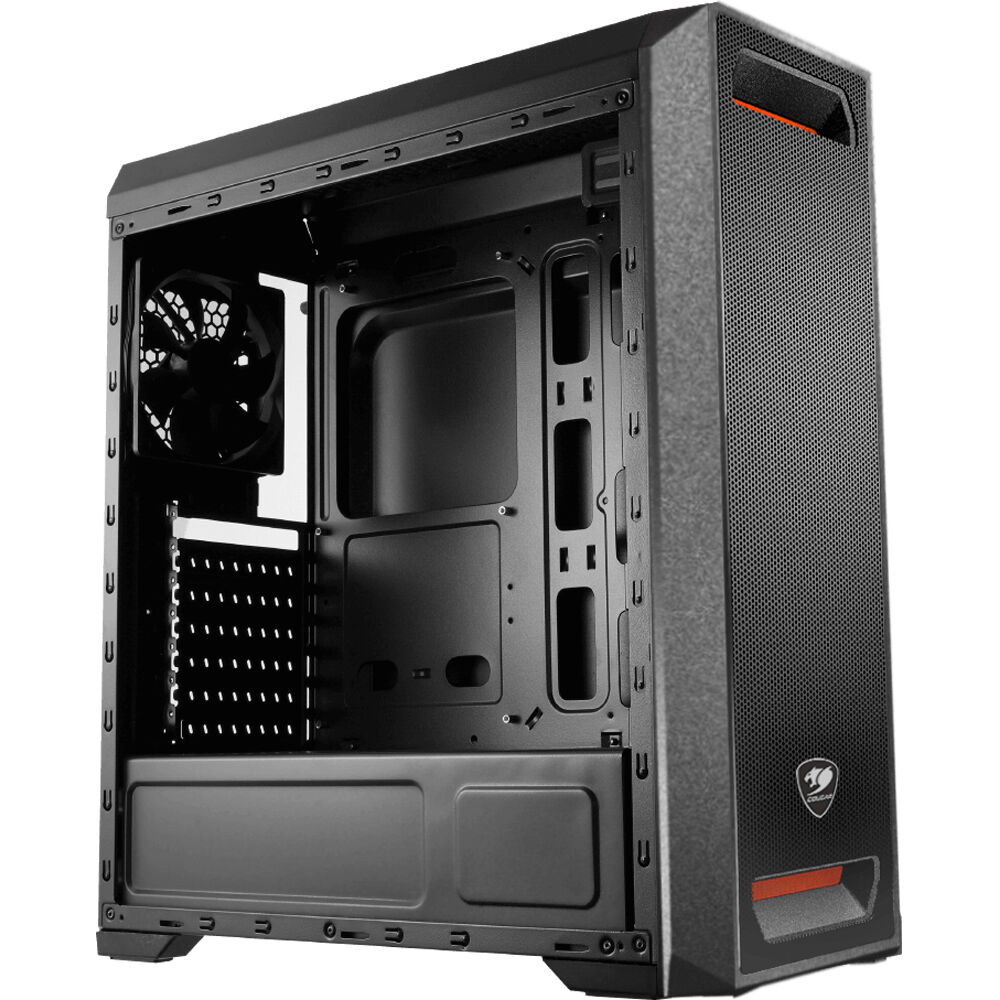

The MX350 Mesh-X Mid-Tower Case from COUGAR is a powerful addition to COUGAR's MX series. With an elegant look, a highly functional design, and durable construction, this case delivers great value for your money and a clear view of your computer's internal components.
Massive Expandability
Seven PCI slots and support for up to three 350mm long graphics cards allow you to install all the horsepower you need to run games at ultra settings, 4K/60 fps, and even more. When you add up the capability of installing up to two 2.5" SSDs and two 3.5" HDDs, what you get is a case that can run and store all the games you want, in the way you want to run them.
Strong Cooling
Want to cool all those powerful components? No problem. You can install up to five fans and three water cooling radiators (with the frontal one up to 240mm) to protect your investment from the threat of overheating.
Minimalist Beauty
The covers for the PSU and the 3.5" drive bay will allow you to hide the cables behind them, improving the internal airflow and giving you an unobstructed view of your components. Easily detachable and cleanable dust filters behind the front, top, and bottom covers will further help keep your computer clean and gorgeous!
UPC: 192554000800
In the Box
- COUGAR MX350 Mesh-X Mid-Tower Case
- 7 x #6-32 Screws for PSU & Expansion Card
- 5 x #6-32 Screws for 3.5" HDDs
- 3 x Screws for Main Board
- 14 x M3 Screws for Main Board, ODD, and 2.5" Drives
- 6 x Cable Ties
- Slot Cover
- 4 x #6-32 Screws for Front Fan
- 2 x #6-32 Screws for 3.5" HDD Tray and Cage
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Massive Expandability
- Strong Cooling
- Minimalist Beauty
COUGAR MX350 MESH-X Specs
Key Specs
| Motherboard Support |
ATX, Micro-ATX, Mini-ITX
|
| Internal Drive Bays |
2 x 3.5"
or 2 x 2.5" and 2 x 2.5" |
| Maximum GPU Length |
13.8" / 350 mm
|
| CPU Cooler Height |
6.3" / 160 mm
|
| Fans Included |
Rear:
1 x 120 mm Non-LED (Unspecified rpm) |
| I/O |
1 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1 x USB-A (USB 2.0) |
| Windowed Panel |
Yes
|
| Built-In Lighting |
No
|
Compatibility
| Motherboard Support |
ATX, Micro-ATX, Mini-ITX
|
| External Drive Bays |
No
|
| Internal Drive Bays |
2 x 3.5"
or 2 x 2.5" and 2 x 2.5" |
| Maximum GPU Length |
13.8" / 350 mm
|
| CPU Cooler Height |
6.3" / 160 mm
|
Cooling
| Fan Mounting |
Front:
2 x 120 mm Rear: 1 x 120 mm Top: 2 x 120 mm |
| Fans Included |
Rear:
1 x 120 mm Non-LED (Unspecified rpm) |
| Maximum Radiator Size |
Front:
240 mm Rear: 120 mm Top: 120 mm |
Inputs / Outputs
| I/O |
1 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1 x USB-A (USB 2.0) |
| Media/Memory Card Slot |
No
|
| Audio I/O |
1 x 3.5 mm Input
1 x 3.5 mm Output |
| Display Outputs |
No
|
Physical
| Windowed Panel |
Yes
|
| Color |
Black
|
| Built-In Lighting |
No
|
| Cable Management Space |
No
|
| Dimensions (W x H x D) |
7.7 x 18.6 x 16.8" / 195 x 473 x 427 mm
|
| Weight |
10.6 lb / 4.8 kg
|
